| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

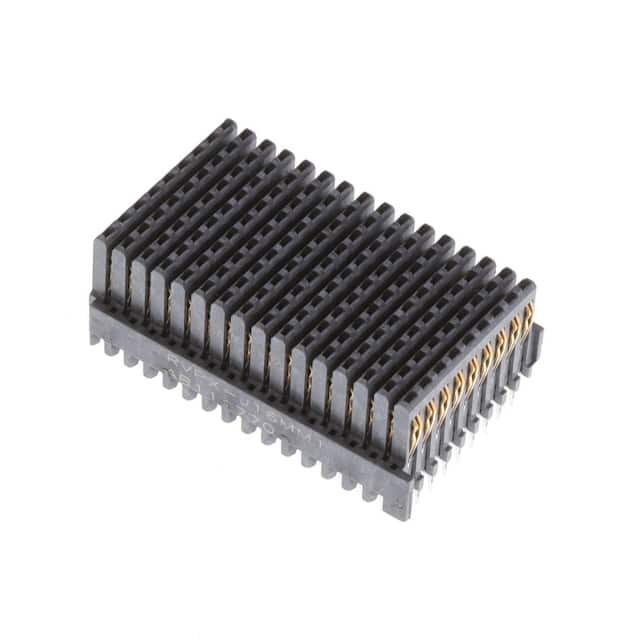

The RVPX-J16MM2 is a VITA 46 center backplane connector designed for high-density backplane applications. It is a receptacle with female blade sockets configured in a 9-row by 16-column grid, providing 144 total positions. All positions are loaded.
The connector features a 1.80mm pitch and uses through-hole, press-fit termination for reliable solderless connections. The contacts are finished with 50.0µin (1.27µm) of gold in the contact area, with a tin termination finish on the compliant contact, as specified in the datasheet. The connector housing is designed for a middle backplane configuration.
This connector is part of the RVPX series from Amphenol Aerospace Operations, suitable for use in rugged backplane systems requiring high pin counts and reliable signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.36 | $38.36 |
| 10+ | $32.80 | $32.80 |
| 25+ | $31.66 | $31.66 |
| 250+ | $29.98 | $29.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RVPX-J16MM2 is a receptacle with female blade sockets.
The RVPX-J16MM2 has 144 positions, all loaded.
The pitch is 1.80mm (0.071 inches).
The mounting type is through hole with press-fit termination.
The contact finish is gold with a thickness of 50.0µin (1.27µm).
The connector style is VITA 46, Center.
The connector has 9 rows and 16 columns.
