Mfr Part #:

RV4NAYSD503A

Mfr Name: Precision Electronics Corporation

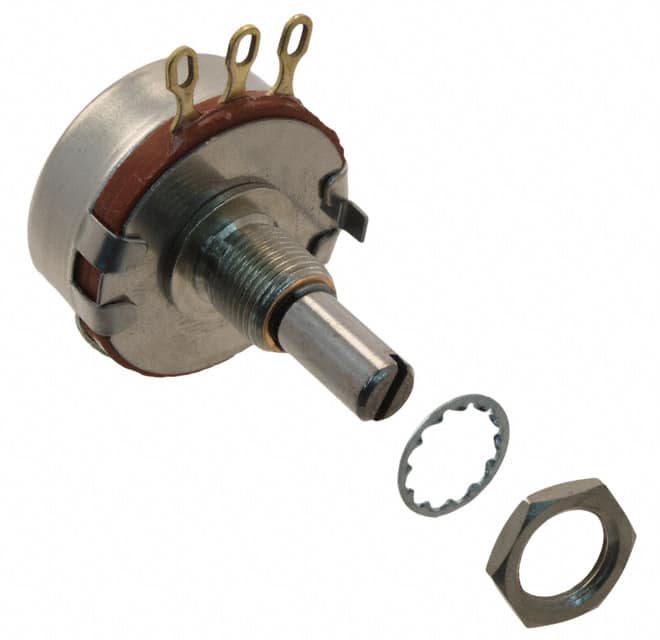

The Precision Electronics Corporation RV4NAYSD503A is a 50k Ohm linear rotary potentiometer. It features a 2W power rating and solder lug termination.

✓ Total Stock: 23 pcs

$ Price Range: $0.05

RV4NAYSD503A Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	23 pcs On Request	23 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

RV4NAYSD503A Description

Short technical summary and product information.

This RV4NAYSD503A rotary potentiometer from Precision Electronics Corporation offers a resistance of 50k Ohms with a linear taper. It is rated for 2 watts of power at 70°C and features a mechanical rotation of 314 degrees.

The potentiometer has a hot molded carbon element and gold-plated terminals. It is designed for panel mounting with a 3/8-32 bushing thread and a slotted actuator. The termination style is solder lug.

Environmental specifications include an operating temperature range of -65°C to +125°C and resistance to soldering heat of 350°C for 5 seconds. It meets MIL-R-94 specifications for humidity, vibration, and shock resistance.

This component is suitable for both military and commercial applications. It is RoHS and REACH compliant and contains no conflict minerals.

RV4NAYSD503A Quick Information

Product Type: Rotary Potentiometer

Series: RV4

Canonical Name: RV4NAYSD503A Rotary Potentiometer

Subcategory: Rotary

RV4NAYSD503A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RV4NAYSD503A Estimated Pricing

Qty	Low	High
1+	$0.05	$0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

RV4NAYSD503A Features

50k Ohm resistance with linear taper.
Rated for 2 watts power at 70°C.
314 degree mechanical rotation.
Panel mount with solder lug termination.
Meets MIL-R-94 environmental specs.

RV4NAYSD503A Applications

Suitable for military applications.
Ideal for commercial applications.
Used in control systems.
Component in electronic assemblies.

RV4NAYSD503A FAQs

5 frequently asked questions generated from this part’s specifications.

What is the resistance value of the RV4NAYSD503A potentiometer?

The RV4NAYSD503A potentiometer has a resistance value of 50k Ohms.

What is the power rating of the RV4NAYSD503A potentiometer?

The power rating for the RV4NAYSD503A potentiometer is 2 watts at 70°C.

What is the taper type of the RV4NAYSD503A potentiometer?

The RV4NAYSD503A potentiometer features a linear taper.

What is the operating temperature range for the RV4NAYSD503A potentiometer?

The operating temperature range for the RV4NAYSD503A potentiometer is -65°C to +125°C.

How is the RV4NAYSD503A potentiometer mounted?

The RV4NAYSD503A potentiometer is designed for panel mounting.

Category	Rotary Potentiometers, Rheostats
Manufacturer Name	Precision Electronics Corporation
Actuator Diameter	0.249" (6.32mm)
Actuator Length	0.875" (22.23mm)
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	None
Bushing Thread	3/8-32
Conflict Minerals	true
Humidity Range	per MIL-R-94
Insulation Resistance	[{'limit_type': 'dry', 'value': 10000, 'unit': 'MΩ', 'display_value': '10K MegΩ'}, {'limit_type': 'wet', 'value': 100000, 'unit': 'MΩ', 'display_value': '100K MegΩ'}]
Lead Style	Solder Lug
Mounting Type	Panel Mount
Number of Gangs	1
Number of Turns	1
Operating Temperature	[{'limit_type': 'minimum', 'value': -65, 'unit': '°C', 'display_value': '-65°C'}, {'limit_type': 'maximum', 'value': 125, 'unit': '°C', 'display_value': '+125°C'}]
Operating Voltage	500 V
Power (Watts)	2W
Power Rating	2W
Resistance	50k Ω
Resistance (Ohms)	50k
Resistance Tolerance	±10% or ±20%
Resistive Material	Carbon
Rotation	314°
Taper	Linear
Termination Style	Solder Lug
Tolerance	±10%
