| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

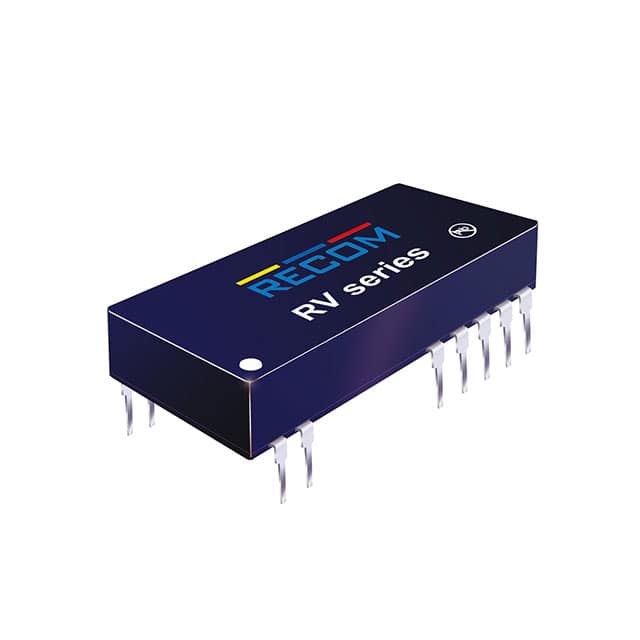

The RV-051509D is a 2W isolated DC-DC converter from Recom Power in the RV series. It operates from a 5V nominal input with ±10% tolerance and delivers dual outputs: +15V at 66mA and -9V at 111mA. The converter provides 6kVDC isolation rated for 1 second, making it suitable for applications requiring high isolation in a compact form factor. Efficiency is typically 70-82% at nominal input and full load. Output ripple and noise is 200mVp-p maximum at 20MHz bandwidth. The device includes short circuit protection (SCP) and operates over a temperature range of -40°C to 85°C. The converter is housed in a 24-DIP module with 14 leads, through-hole mounting, and measures 32.4mm x 14.7mm x 11.4mm. It is RoHS3 and REACH compliant, with UL/CSA/IEC/EN safety certifications. Applications include ITE (commercial) and medical equipment, as well as IGBT gate drive circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.49 | $22.49 |
| 5+ | $21.66 | $21.66 |
| 10+ | $21.30 | $21.30 |
| 30+ | $20.85 | $20.85 |
| 60+ | $20.51 | $20.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5V nominal with ±10% tolerance.
+15V at 66mA and -9V at 111mA.
6kVDC minimum for 1 second.
-40°C to 85°C.
24-DIP Module, 14 Leads, through-hole mounting.
Yes, RoHS3 compliant per datasheet.
Yes, short circuit protection (SCP) is included.
