RUW15SL05C Isolated DC-DC converter module with 16-160V input range, 5V output at 3A (15W). Through hole 8-DIP package.
Mfr Part #:

RUW15SL05C

Available from 1 distributors
Mfr Name: Murata
Murata
Isolated DC-DC converter module with 16-160V input range, 5V output at 3A (15W). Through hole 8-DIP package.
✓ Total Stock: 10 pcs

RUW15SL05C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 1727 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RUW15SL05C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Storage Temperature
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

RUW15SL05C Description

Short technical summary and product information.

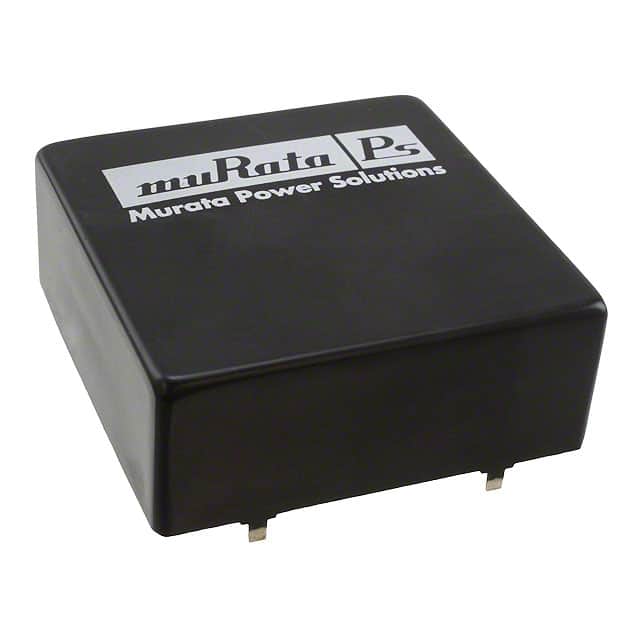

The Murata Power Solutions RUW15SL05C is an isolated DC-DC converter module from the RUW15 series. It accepts a wide input voltage range of 16V to 160V and provides a regulated 5V output at up to 3A, delivering 15W of output power. The converter features remote on/off control, over-temperature protection (OTP), over-voltage protection (OVP), and short-circuit protection (SCP). It is designed for commercial ITE and railway applications. The module is housed in an 8-DIP through-hole package measuring 50.8mm x 50.8mm x 20.0mm and operates over a temperature range of -40°C to 85°C. Typical efficiency is 80% (datasheet shows 75.9% at 24V input).

RUW15SL05C Quick Information

Product Type: DC-DC Converter
Series: RUW15
Canonical Name: Murata Power Solutions RUW15SL05C Isolated DC-DC Converter, 5V Output, 15W
Subcategory: Isolated Module

RUW15SL05C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RUW15SL05C Features

  • Isolated DC-DC converter module.
  • Wide input voltage range 16V to 160V.
  • Single 5V output at 3A (15W).
  • Through hole 8-DIP package.
  • Includes remote on/off and protection features.

RUW15SL05C Applications

  • Suitable for commercial ITE equipment.
  • Designed for railway applications.
  • Ideal for wide input voltage range systems.

RUW15SL05C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

16V to 160V.

What is the output voltage and current?

5V at 3A (15W).

What is the operating temperature range?

-40°C to 85°C.

What is the package type?

8-DIP Module, through hole mounting.

Is the RUW15SL05C RoHS compliant?

RoHS3 Compliant (unverified).

What protection features does it have?

Over-temperature, over-voltage, and short-circuit protection.
