| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,069 pcs
|
1069 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Avalanche Energy | |
| Current | |
| DC Blocking Voltage | |
| Industrial Grade | |
| Lead Count | |
| Mounting Type | |
| Nonrepetitive Peak Surge Current | |
| Operating Temperature | |
| Operating Temperature - Maximum | |
| Peak Repetitive Reverse Voltage | |
| Power Dissipation | |
| Repetitive Peak Surge Current | |
| Reverse Current (Maximum @ VR = 1000 V, TC = 150 °C) | |
| Reverse Current (Maximum @ VR = 1000 V, TC = 25 °C) | |
| Reverse Recovery Time (Typical @ IF = 1 A, dIF/dt = 100 A/µs) | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance - Junction to Case | |
| Voltage |
The RURG80100 is an ultrafast diode designed for high-efficiency switching power supplies and power switching circuits. It offers a peak repetitive reverse voltage of 1000 V and an average rectified forward current of 80 A.
Key electrical characteristics include a maximum forward voltage of 1.9 V at 80 A, a typical reverse recovery time of 200 ns at 80 A, and avalanche energy rating of 50 mJ. The device operates over a junction temperature range of -65°C to 175°C and has a maximum power dissipation of 180 W.

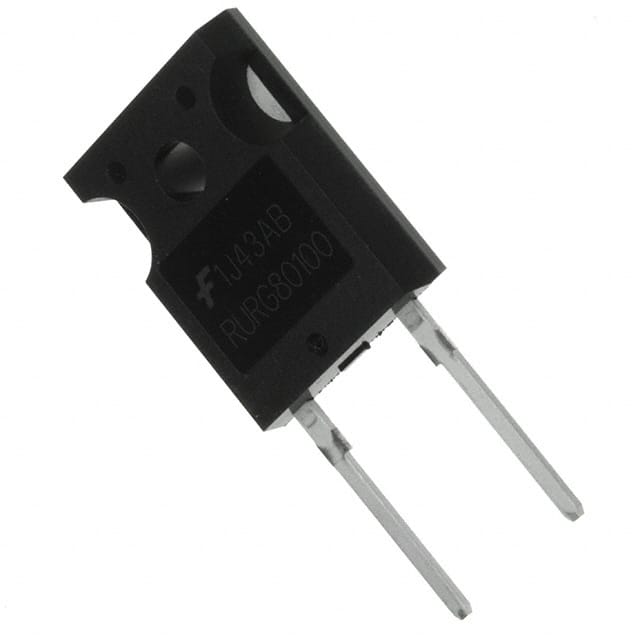

The diode is packaged in a JEDEC-style TO-247-2 through-hole package with a lead count of 2. It is Pb-free and RoHS compliant, making it suitable for environmentally conscious designs.
The maximum peak repetitive reverse voltage (VRRM) is 1000 V.
The average rectified forward current (IF(AV)) is 80 A at a case temperature of 53°C.
The typical reverse recovery time (trr) is 200 ns when tested at IF = 80 A with dIF/dt = 100 A/µs.
The RURG80100 is packaged in a TO-247-2 through-hole package.
Yes, the RURG80100 is RoHS compliant and Pb-free.
The operating junction temperature range is -65°C to +175°C.
The maximum forward voltage (VF) is 1.9 V at IF = 80 A and TC = 25°C.
