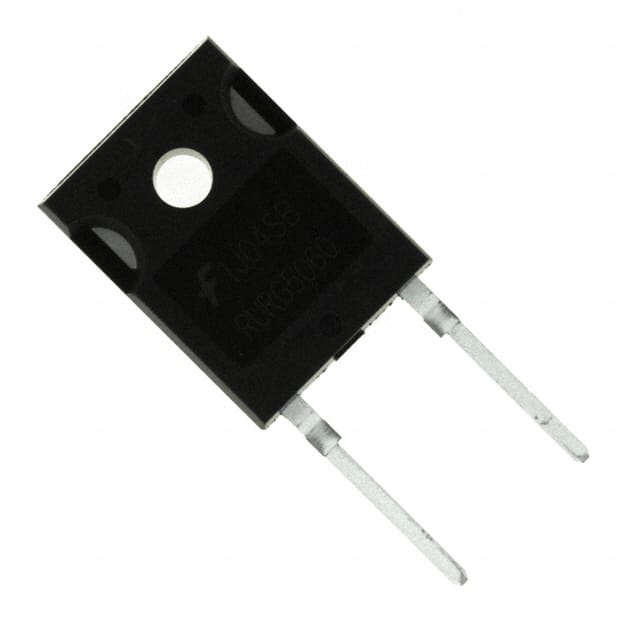

RURG5060 Ultrafast rectifier diode, 600V reverse voltage, 50A forward current, 75ns reverse recovery time in TO-247-2 package.
Mfr Part #:

RURG5060

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
Ultrafast rectifier diode, 600V reverse voltage, 50A forward current, 75ns reverse recovery time in TO-247-2 package.
✓ Total Stock: 3,240 pcs

RURG5060 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,222 pcs
On Request
3222 pcs On Request 1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request 10/1/1905 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RURG5060 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

RURG5060 Description

Short technical summary and product information.

The RURG5060 is an ultrafast diode from onsemi designed for freewheeling and clamping circuits in switching power supplies and power switching applications.



Key specifications include a peak repetitive reverse voltage of 600V and an average rectified forward current of 50A at a case temperature of 102°C. Maximum forward voltage is 1.6V at 50A and 25°C, with a typical forward voltage of 1.4V at 150°C. Reverse recovery time is 75ns maximum at 50A.



The device is avalanche energy rated at 40mJ and can handle nonrepetitive peak surge currents up to 500A. Power dissipation is rated at 150W. The junction-to-case thermal resistance is 1°C/W.



Packaged in a through-hole TO-247-2 (JEDEC style 2 lead) package, this diode is suitable for industrial power supply and power switching circuits. It is Pb-free and RoHS compliant.

RURG5060 Quick Information

Product Type: Ultrafast Diode
Canonical Name: RURG5060 Ultrafast Diode, 600V, 50A
Subcategory: Ultrafast Recovery Diode

RURG5060 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

RURG5060 Features

  • 600V peak repetitive reverse voltage.
  • 50A average forward current rating.
  • 75ns maximum reverse recovery time.
  • Avalanche energy rated at 40mJ.
  • Through-hole TO-247-2 package.

RURG5060 Applications

  • Used in switching power supply freewheeling.
  • Ideal for power switching clamping diodes.
  • Suitable for industrial power applications.

RURG5060 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the RURG5060?

The peak repetitive reverse voltage (VRRM) is 600V.

What is the forward current rating?

The average rectified forward current is 50A at a case temperature of 102°C.

How fast is the reverse recovery time?

Maximum reverse recovery time is 75ns at IF=50A and dIF/dt=100A/µs.

What is the forward voltage drop?

Maximum forward voltage is 1.6V at 50A and 25°C; typical is 1.4V at 150°C.

What package is the RURG5060 available in?

The device comes in a through-hole TO-247-2 package.

Is the RURG5060 RoHS compliant?

The datasheet states it is Pb-Free and RoHS Compliant.
