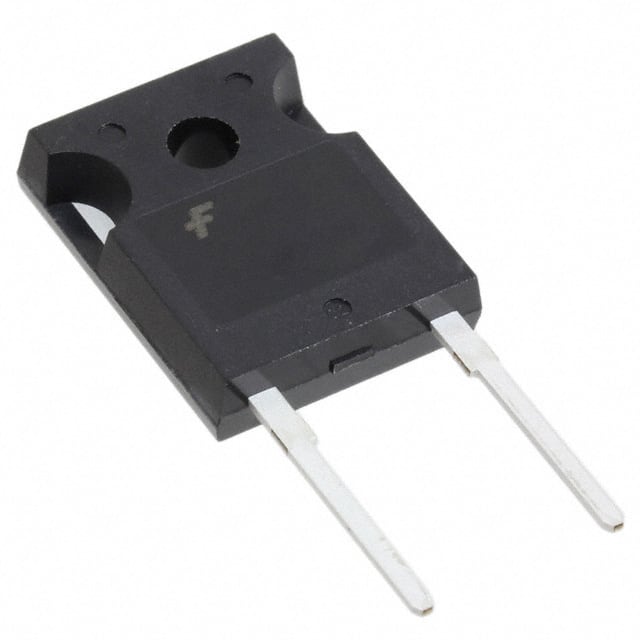

The RURG3060-F085 is an ultrafast rectifier diode designed for high-speed switching applications. It offers a peak repetitive reverse voltage of 600V and an average rectified forward current of 30A at 25°C case temperature. The device features a low forward voltage drop of 1.5V maximum at 30A and a fast reverse recovery time of 80ns maximum (60ns typical) at 30A, enabling efficient operation in power conversion circuits.
This rectifier is avalanche energy rated at 20mJ, providing robustness in inductive switching environments. It is AEC-Q101 qualified and PPAP capable, making it suitable for automotive applications such as DC/DC converters and on-board chargers. The device is also Pb-free and RoHS compliant.
The RURG3060-F085 is housed in a TO-247-2 through-hole package, offering excellent thermal performance with a junction-to-case thermal resistance of 0.7°C/W. The operating junction temperature range is -55°C to 175°C, allowing use in harsh environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.04 | $5.04 |
| 10+ | $2.82 | $2.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive reverse voltage is 600V.
The average rectified forward current is 30A at 25°C case temperature.
The forward voltage is typically 1.26V and maximum 1.5V at 30A and 25°C.
The reverse recovery time is 80ns maximum (60ns typical) at 30A, 25°C.
It is available in a TO-247-2 through-hole package.
Yes, it has an avalanche energy rating of 20mJ at 1A, 40mH.
The operating junction temperature range is -55°C to 175°C.
