| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,000 pcs
|
35000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

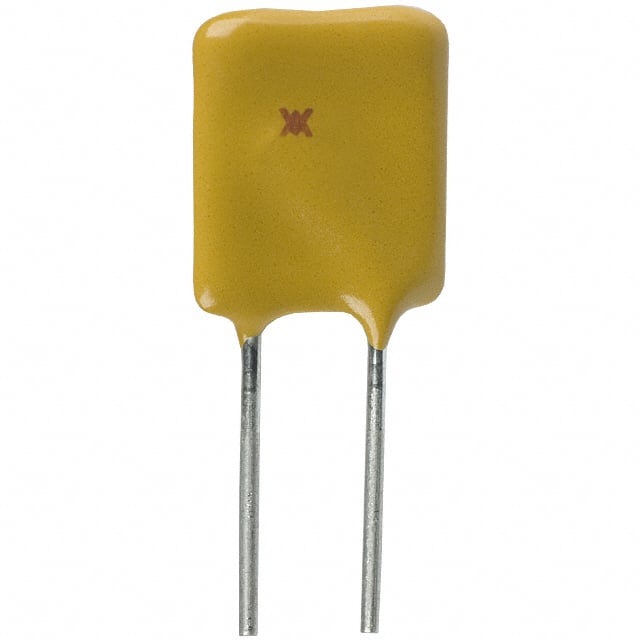

The RUEF600 is a polymeric PTC resettable fuse manufactured by Littelfuse Inc. It offers a hold current of 6A and a voltage rating of 30V, making it suitable for overcurrent protection in a variety of electronic circuits. The device has a time to trip of 16 seconds and an initial resistance of 40 milliohms.
The fuse operates over a wide temperature range from -40°C to 85°C, ensuring reliable performance in harsh environments. It is housed in a radial disc package with through-hole mounting, featuring a lead spacing of 10.15mm. The dimensions are 16.50mm in length, 3.00mm in width, and 24.10mm in height.
This PTC fuse is designed for resettable overcurrent protection, automatically resetting after the fault is cleared. The polymeric construction provides low resistance during normal operation and high resistance under fault conditions. It is commonly used in power supplies, battery chargers, and motor protection circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.71 | $0.71 |
| 50+ | $0.52 | $0.52 |
| 100+ | $0.49 | $0.49 |
| 250+ | $0.48 | $0.48 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.41 | $0.41 |
| 2,500+ | $0.41 | $0.41 |
| 5,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The hold current is 6A.
The voltage rating is 30V.
The time to trip is 16 seconds.
The package type is Radial, Disc with through-hole mounting.
The operating temperature range is -40°C to 85°C.
The initial resistance is 40 milliohms.
