Mfr Part #:

RTW48-3R2

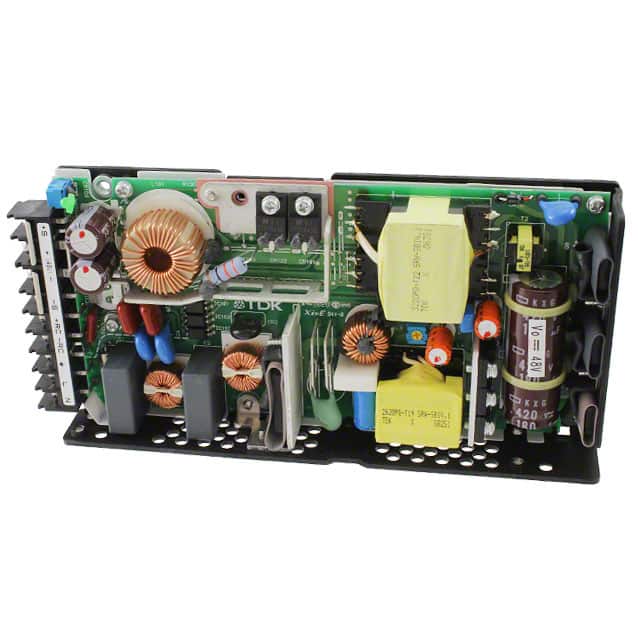

The TDK Corporation RTW48-3R2 is a 150W AC/DC converter with an open frame design and chassis mount. It provides a 48V output at 3.2A.

Stock on Request

RTW48-3R2 Description

Short technical summary and product information.

The TDK Corporation RTW48-3R2 is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers 150W of power with an output voltage of 48V and a current rating of 3.2A. This converter features a chassis mount for secure installation and operates with an efficiency of 89%.

Key features include adjustable output, DC input capability, remote on/off control, remote sense functionality, and universal input. The operating temperature range is from -10°C to 71°C with derating. Its dimensions are 180.0mm in length, 29.2mm in width, and 92.0mm in height.

This model is approved by CE, cURus, and TUV, indicating compliance with relevant safety and performance standards. It is suitable for various commercial applications requiring a reliable power supply.

RTW48-3R2 Quick Information

Product Type: AC DC Converter

Canonical Name: TDK Corporation RTW48-3R2 AC/DC Converter

Subcategory: AC DC Converters

RTW48-3R2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RTW48-3R2 Features

150W open frame AC/DC converter.
Chassis mount for secure installation.
Provides 48V output at 3.2A.
Features universal input and adjustable output.
Operates from -10°C to 71°C.

RTW48-3R2 Applications

Designed for commercial ITE equipment.
Ideal for industrial control systems.
Use in telecommunications power supplies.
Suitable for test and measurement instruments.
For automated test equipment applications.

RTW48-3R2 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the RTW48-3R2?

48V.

What is the power rating?

150W.

What is the operating temperature range?

-10°C to 71°C with derating.

What is the mounting type?

Chassis mount.

Does the RTW48-3R2 have remote on/off capability?

Yes, it includes remote on/off and remote sense features.

What are the dimensions?

180.0mm (7.09") length, 29.2mm (1.15") width, 92.0mm (3.62") height.

What safety approvals does it have?

CE, cURus, and TUV.

Category	AC DC Converters
Manufacturer Name	TDK Corporation
Applications	ITE (Commercial)
Approval Agency	CE, cURus, TUV
Current	3.2 A
Efficiency	89%
Features	Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Universal Input
Height	92.0mm (3.62")
Length	180.0mm (7.09")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-10°C ~ 71°C (With Derating)
Power (Watts)	150W
Type	Open Frame
Voltage	3 kV
Width	29.2mm (1.15")
