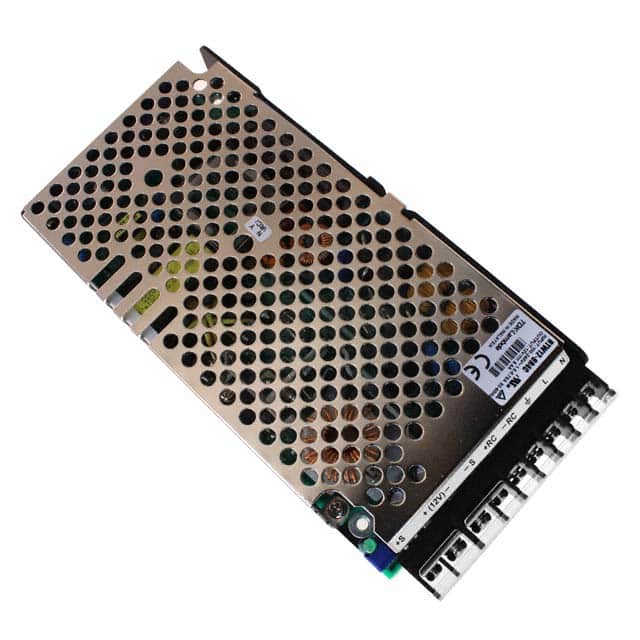

RTW12-8R4C The TDK Corporation RTW12-8R4C is an enclosed AC-DC converter with 100W power output. It features a chassis mount and operates with an input voltage range of 85-265 VAC.
Mfr Part #:

RTW12-8R4C

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation RTW12-8R4C is an enclosed AC-DC converter with 100W power output. It features a chassis mount and operates with an input voltage range of 85-265 VAC.
Stock on Request

RTW12-8R4C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width

RTW12-8R4C Description

Short technical summary and product information.

The TDK Corporation RTW12-8R4C is an enclosed AC-DC power supply converter designed for ITE (Commercial) applications. It delivers 100W of power with a single output providing 9.6-13.2 VDC at up to 8.4A. The converter accepts a wide AC input voltage range of 85-265 VAC and features an efficiency of 86%.



Designed for easy integration, this unit utilizes a chassis mount for secure installation. Key features include adjustable output, DC input capability, remote on/off control, remote sense functionality, and universal input. The operating temperature range is -10°C to 71°C with derating. It has undergone testing and approval by CE, cURus, and TUV agencies.



Dimensions are 160.0mm in length, 25.0mm in width, and 82.0mm in height. The RTW12-8R4C is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions. REACH status is unaffected.

RTW12-8R4C Quick Information

Product Type: AC DC Converter
Series: RTW12
Canonical Name: TDK Corporation RTW12-8R4C AC-DC Converter
Subcategory: AC DC Converters

RTW12-8R4C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RTW12-8R4C Features

  • 100W enclosed AC-DC converter.
  • Wide 85-265 VAC input range.
  • Single 9.6-13.2 VDC output at 8.4A.
  • Chassis mount for secure installation.
  • RoHS3 compliant and MSL 1 rated.

RTW12-8R4C Applications

  • Designed for ITE (Commercial) applications.
  • Suitable for systems requiring adjustable output.
  • Features remote on/off and sense functions.
  • Universal input simplifies global deployment.

RTW12-8R4C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the RTW12-8R4C?

The input voltage range is 85-265 VAC at 50/60 Hz.

What output voltage and current does the RTW12-8R4C provide?

The output voltage is adjustable from 9.6 to 13.2 VDC, with a rated output current of 8.4A and maximum power of 100W.

What is the operating temperature range of the RTW12-8R4C?

The operating temperature range is -10°C to 71°C with derating.

What safety approvals does the RTW12-8R4C have?

The converter is approved to CE, cURus, and TUV standards.

What is the efficiency of the RTW12-8R4C?

The efficiency is 86%.

What is the isolation voltage of the RTW12-8R4C?

The input-to-output isolation voltage is 3 kV.

What mounting type does the RTW12-8R4C use?

The converter is chassis mount and enclosed.
