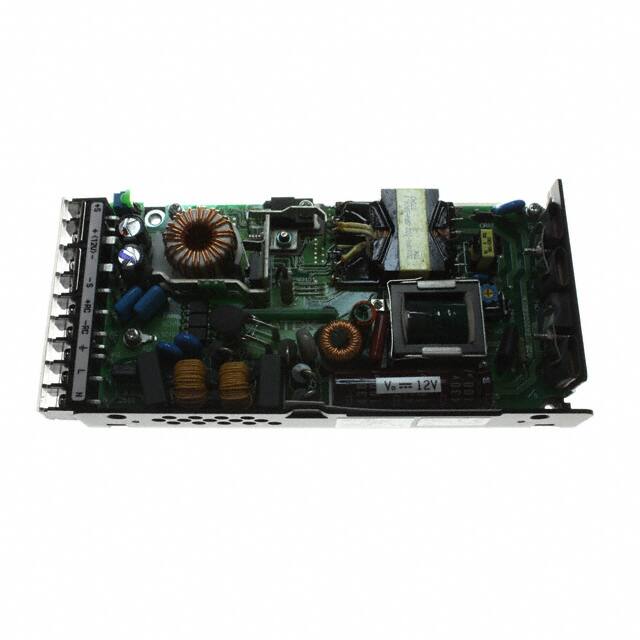

The TDK Corporation RTW12-8R4 is an AC/DC converter designed for ITE (Commercial) applications. This open-frame unit delivers 100W of power with an output current of 8.4A and an output voltage of 12V.
Key electrical specifications include an efficiency of 86% and a voltage isolation rating of 3 kV. It operates within a temperature range of -10°C to 71°C with derating.
Designed for chassis mounting, the RTW12-8R4 offers features such as adjustable output, DC input capability, remote on/off, and remote sense functionality. Its dimensions are 160.0mm in length, 24.2mm in width, and 82.0mm in height.
This converter is RoHS3 Compliant, with an MSL rating of 1 Unlimited and REACH Unaffected status.
The TDK Corporation RTW12-8R4 has an output power of 100W.
The RTW12-8R4 provides an output current of 8.4 A.
The RTW12-8R4 uses Chassis Mount.
The operating temperature range is -10°C to 71°C (With Derating).
The RTW12-8R4 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
