| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

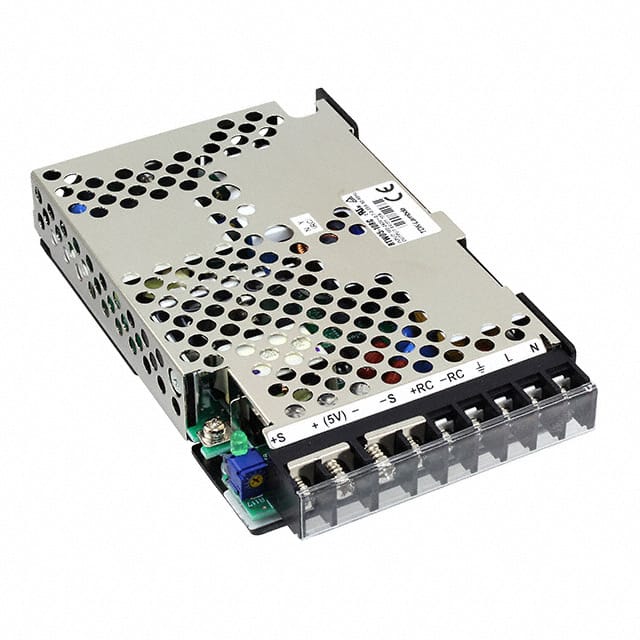

The TDK Corporation RTW05-10RC is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 50W output power with a 10A current rating and a 5V output voltage.
Key features include adjustable output, DC input capability, remote on/off functionality, remote sense, and universal input. The converter has an efficiency of 82% and an isolation voltage of 3 kV. It is designed for chassis mounting.
Operating within a temperature range of -10°C to 71°C (with derating), this unit offers dimensions of 124.0mm in length, 22.0mm in width, and 82.0mm in height. It is approved by CE, cURus, and TUV.
This model is RoHS3 compliant and has an MSL rating of 1.
The output power is 50W.
The output current is 10A.
It uses chassis mount.
The operating temperature range is -10°C to 71°C (With Derating).
The dimensions are 124.0mm in length, 22.0mm in width, and 82.0mm in height.
