| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Resistance | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Height | |
| Length | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Power Consumption | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style | |
| Width |

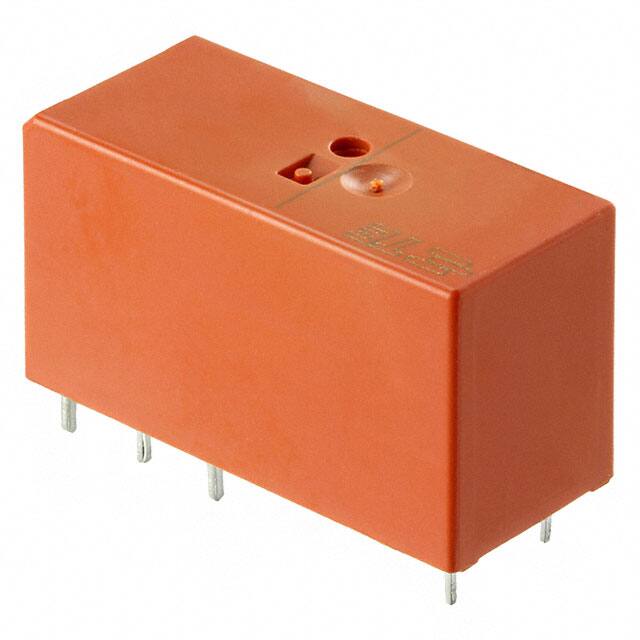

The TE Connectivity RTE24005 is a general purpose relay designed for various applications. It features a DPDT (2 Form C) contact configuration, capable of handling a contact current rating of 8A and a maximum switching voltage of 400VAC. The relay operates on a 5VDC coil voltage with a coil resistance of 62 Ohms and a power consumption of 400mW.
This relay is constructed with Silver Nickel (AgNi) contact material, ensuring reliable performance. It has an operate time of 8 ms and a release time of 6 ms. The operating temperature range is from -40°C to 85°C. The RTE24005 is designed for through-hole mounting and features a PC Pin termination style.
Packaged in a tube, this relay is sealed for protection. Its dimensions are 29 mm in length, 12.7 mm in width, and 15.7 mm in height. The series is Rt2, and it is classified under power relays over 2 amps.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact current rating is 8 A.
The coil voltage is 5 VDC.
It has a DPDT (2 Form C) contact form.
The operating temperature range is -40°C to 85°C.
It is a through-hole mounted relay.
The maximum switching voltage is 400 VAC.
The contact material is Silver Nickel (AgNi).
