| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

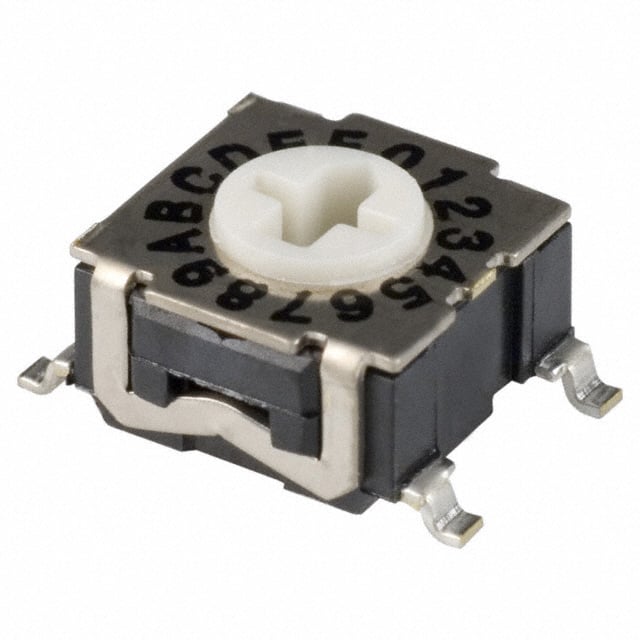

The C&K Components RTE1600G44 is a rotary DIP switch with hexadecimal circuitry, designed for efficient and reliable switching applications. This component features 16 positions, allowing for a wide range of configurations.
With a current rating of 100mA and a voltage rating of 30VDC, the RTE1600G44 is suitable for various electronic circuits. Its operating temperature range is from -25°C to 85°C, ensuring performance in diverse environments. The switch is designed for surface mounting with a gull wing termination style and a pitch of 2.54mm (0.100"). The height above the board is 4.27mm (0.168").
This model is not washable and has an actuator type described as Rotary for Tool. It is RoHS3 compliant and has an MSL of 1, indicating unlimited moisture sensitivity level. The REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 85°C.
The current rating is 100mA.
The voltage rating is 30VDC.
The RTE1600G44 is a surface mount device.
The pitch is 2.54mm (0.100").
