| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
384 pcs
|
384 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Angle of Throw | |
| Circuit per Deck | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Depth Behind Panel | |
| Index Stops | |
| Mounting Type | |
| Number of Decks | |
| Number of Poles per Deck | |
| Number of Positions | |
| Termination Style | |
| Voltage Rating |

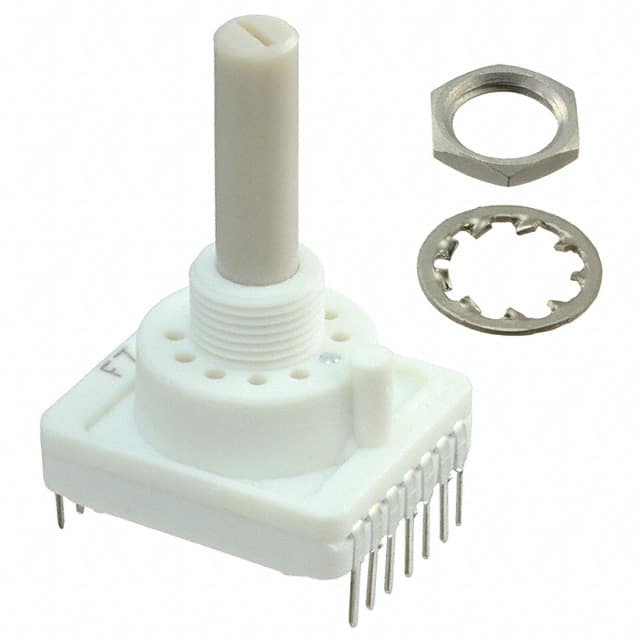

This C&K Components RTAP32S06M25NS is a rotary switch with 6 positions per deck and 2 poles per deck, offering a DP6T circuit configuration. It is designed for panel mounting and features through-hole termination with PC pins.
The switch has a non-shorting (BBM) contact timing and a fixed index stop. The actuator is round with a 6mm diameter and a slotted tip, with an overall length of 25mm. The contact material is brass with a silver finish, rated for 150mA at 60V.
Key mechanical specifications include an angle of throw of 30 degrees and a depth behind the panel of 12.60mm. The moisture sensitivity level is 1 (unlimited).
This rotary switch is suitable for applications requiring manual selection of multiple circuits, such as control panels, test equipment, and industrial machinery.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RTAP32S06M25NS rotary switch has 6 positions.
The current rating is 150mA.
The voltage rating is 60V.
It uses panel mount mounting.
The termination style is PC Pin.
The angle of throw is 30 degrees.
The MSL is 1 Unlimited.
