| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Angle of Throw | |
| Circuit per Deck | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Depth | |
| Depth Behind Panel | |
| Diameter | |
| Height | |
| Housing Material | |
| Index Stops | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Decks | |
| Number of Poles | |
| Number of Poles per Deck | |
| Number of Positions | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Width |

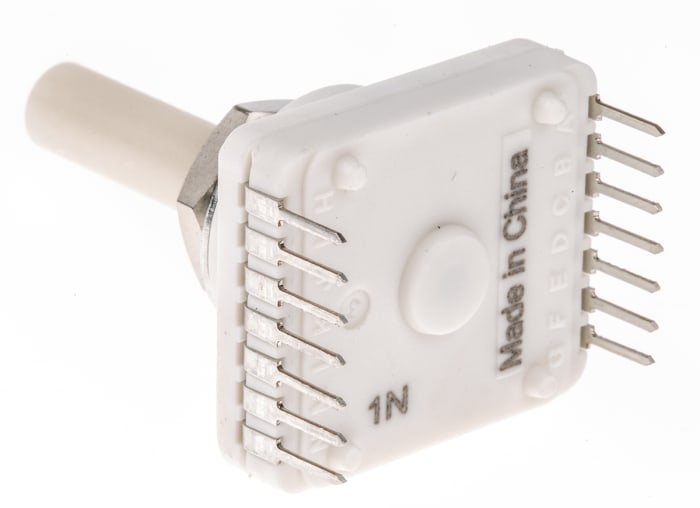

This C&K Components RTAP31S12M25NS is a rotary switch from the RTA series, featuring a Single Pole 12 Throw (SP12T) contact configuration. It offers 12 distinct positions with a non-shorting (BBM) contact timing.
The switch is rated for a current of 150mA and a voltage of 60V AC/DC. It has a contact finish of silver and is constructed with a brass contact material. The actuator is round with a slotted, 6mm diameter and a length of 25mm, with a silver color.
Designed for PCB mounting, this switch utilizes through-hole termination style. It has a panel mount diameter of 10.2mm and a depth behind the panel of 12.60mm. The overall dimensions include a width of 25.8mm, a height of 43.6mm, and a depth of 22mm. The housing is made of thermoplastic.
Environmental specifications include an operating temperature range of -20°C to 70°C. The switch has a mechanical life of 10,000 cycles. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RTAP31S12M25NS switch has a SP12T (Single Pole 12 Throw) contact configuration.
The C&K RTAP31S12M25NS rotary switch has 12 positions.
The switch is rated for a current of 150mA.
The maximum voltage rating for this rotary switch is 60V AC/DC.
The operating temperature range is from -20°C to 70°C.
The RTAP31S12M25NS supports PCB mount and panel mount with through-hole termination.
