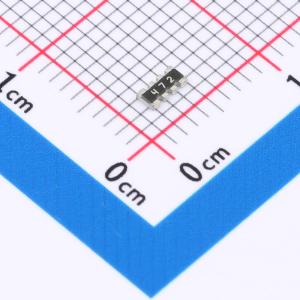

RTA03-4D472JTP The Ralec Electronic RTA03-4D472JTP is a 4-element resistor network with a resistance of 4.7kΩ and ±5% tolerance. It is designed for SMT applications.
Mfr Part #:

RTA03-4D472JTP

Available from 1 distributors
Mfr Name: Ralec Electronic
Ralec Electronic
The Ralec Electronic RTA03-4D472JTP is a 4-element resistor network with a resistance of 4.7kΩ and ±5% tolerance. It is designed for SMT applications.
✓ Total Stock: 500 pcs

RTA03-4D472JTP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RTA03-4D472JTP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Lead Style
Mounting Type
Number of Resistors
Operating Temperature
Package / Case
Power Per Element
Resistance
SVHC Present
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

RTA03-4D472JTP Description

Short technical summary and product information.

The Ralec Electronic RTA03-4D472JTP is a 4-element resistor network suitable for various electronic applications. It features a resistance value of 4.7kΩ with a tolerance of ±5%. The network operates within a temperature range of -55°C to 155°C and has a power rating of 62.5mW per element.



This component is designed for surface-mount technology (SMT) and comes in a 0603x4 package. The construction includes a nickel layer of at least 2μm and a pure tin layer of at least 3μm. It is specified as lead-free and halogen-free.



The resistor network has a temperature coefficient of ±200ppm/℃. It is suitable for general-purpose applications requiring reliable resistance values in a compact SMT form factor. The product is manufactured by Ralec Electronic.

RTA03-4D472JTP Quick Information

Product Type: Resistor Network
Series: RTA03
Canonical Name: Ralec Electronic RTA03-4D472JTP 4-Element Resistor Network
Subcategory: Resistor Networks, Arrays

RTA03-4D472JTP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: 无铅

RTA03-4D472JTP Features

  • 4-element resistor network.
  • 4.7kΩ resistance with ±5% tolerance.
  • SMT package for surface mounting.
  • Wide operating temperature range.
  • Lead-free and halogen-free construction.

RTA03-4D472JTP Applications

  • Used for pull-up/pull-down in digital circuits
  • Ideal for compact voltage divider networks
  • Suitable for signal line termination
  • Employed in microcontroller I/O protection

RTA03-4D472JTP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of each element in the RTA03-4D472JTP?

4.7kΩ per element.

What is the tolerance of the resistor network?

±5%

How many resistors are in the RTA03-4D472JTP?

4

What is the package type of this resistor network?

0603x4 SMT package.

What is the power rating per element?

62.5mW

What is the temperature coefficient?

±200ppm/℃

What is the operating temperature range?

-55°C to 155°C
