| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,014 pcs
|
5014 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,565 pcs
|
1565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,490 pcs
|
1490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

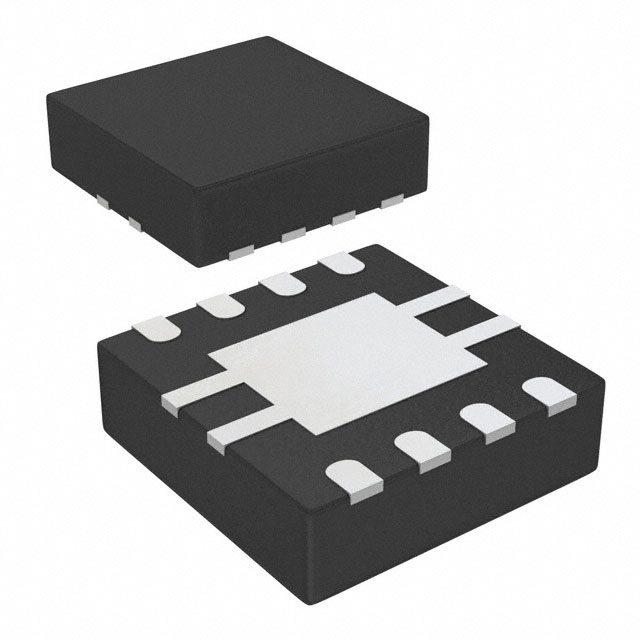

The RT9187GQV is a positive adjustable linear voltage regulator from RICHTEK. It is designed to deliver up to 1A output current with a low dropout voltage of 0.36V maximum at 1A load. The quiescent current is 500µA. The regulator offers a power supply rejection ratio of 60dB at 100Hz decreasing to 50dB at 10kHz. It includes over-current and over-temperature protection, as well as an enable control feature for power sequencing. The device operates over a temperature range of -40°C to 125°C. It is packaged in an 8-VDFN (3x3) exposed pad surface mount package, which provides efficient thermal dissipation. This regulator is suitable for a variety of applications requiring a stable adjustable positive voltage output with low dropout and low noise.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 4.5V.
The package is 8-VDFN (3x3) with exposed pad.
The operating temperature range is -40°C to 125°C.
The maximum dropout voltage is 0.36V at 1A load.
It includes over-current and over-temperature protection.
PSRR is 60dB at 100Hz decreasing to 50dB at 10kHz.
Yes, it has an Enable control feature.
