RT9085AWSC The RICHTEK RT9085AWSC is a linear voltage regulator with a 1A output current and 3V output voltage. It features a Surface Mount package for easy integration.
Mfr Part #:

RT9085AWSC

Available from 1 distributors
Mfr Name: Richtek
Richtek
The RICHTEK RT9085AWSC is a linear voltage regulator with a 1A output current and 3V output voltage. It features a Surface Mount package for easy integration.
✓ Total Stock: 1,319 pcs
$ Price Range: $0.28

RT9085AWSC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,319 pcs
On Request
1319 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RT9085AWSC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

RT9085AWSC Description

Short technical summary and product information.

The RICHTEK RT9085AWSC is a high-performance linear voltage regulator designed for various power management applications. It provides a stable 3V output voltage with a maximum output current of 1A. The device operates efficiently with a low voltage dropout of 0.06V at 1mA, ensuring minimal power loss.

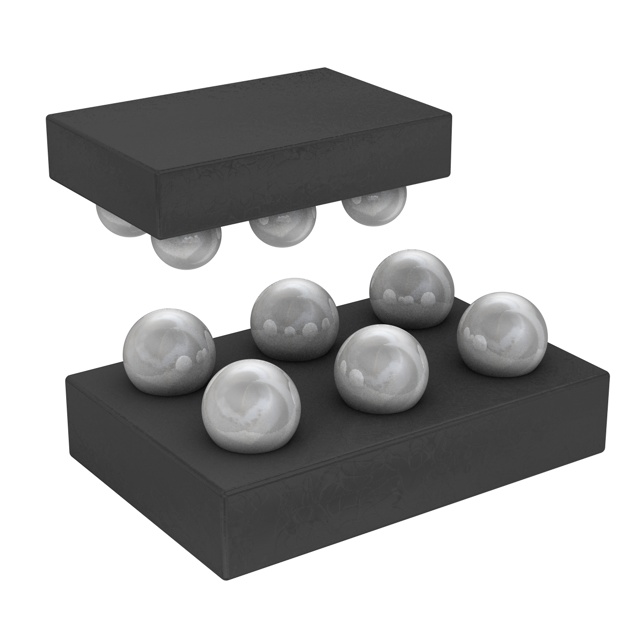

Featuring a compact 6-WLCSP package, the RT9085AWSC is suitable for space-constrained designs. Its operating temperature range of -40°C to 125°C (TJ) allows for reliable performance in demanding environments. Protection features include current limit and over-temperature shutdown, enhancing system reliability.



This adjustable positive voltage regulator offers a PSRR of 70dB at 1kHz, making it suitable for noise-sensitive applications. The 'Enable' control feature provides additional power management flexibility. Its RoHS3 compliant status indicates adherence to environmental standards.

RT9085AWSC Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: RICHTEK RT9085AWSC Linear Voltage Regulator
Subcategory: Linear

RT9085AWSC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RT9085AWSC Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

RT9085AWSC Features

  • 1A output current capability.
  • Stable 3V output voltage.
  • Low 0.06V dropout voltage.
  • Wide -40°C to 125°C operating temperature.
  • Compact 6-WLCSP package.

RT9085AWSC Applications

  • Ideal for portable electronic devices.
  • Suitable for battery-powered systems.
  • Used in power management circuits.
  • Applicable in noise-sensitive designs.

RT9085AWSC FAQs

8 frequently asked questions generated from this part’s specifications.
What is the output voltage of the RT9085AWSC?

The nominal output voltage is 3V, and it is adjustable.

What is the output current rating of the RT9085AWSC?

1A.

What is the dropout voltage of the RT9085AWSC?

0.06V maximum at 1mA load.

What is the PSRR of the RT9085AWSC?

70dB at 1kHz.

What is the operating temperature range of the RT9085AWSC?

-40°C to 125°C (junction).

What package is the RT9085AWSC available in?

6-UFBGA, WLCSP; supplier device package 6-WLCSP (1.2x0.80 mm).

Does the RT9085AWSC include protection features?

Yes, it includes current limit and over-temperature protection.

Does the RT9085AWSC have an enable control?

Yes, it includes an enable control feature.
