| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,626 pcs
|
4626 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Control Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel |
The RICHTEK RT9055-DGWSC is a linear, low dropout (LDO) voltage regulator designed for power management applications. It offers two fixed 3.3V outputs, each capable of supplying up to 300mA of current. The device accepts an input voltage up to 5.5V and exhibits a low dropout voltage of 0.3V at 300mA. Protection features include over current, over temperature, and short circuit protection.
This regulator operates within a temperature range of -40°C to 85°C and features a low quiescent current of 58 µA. The PSRR is rated between 38dB and 70dB across a frequency range of 100Hz to 300kHz. The RT9055-DGWSC is supplied in a compact 6-WLCSP package, suitable for surface mount applications.
It is RoHS compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RT9055-DGWSC provides a fixed output voltage of 3.3V.
The maximum input voltage for the RT9055-DGWSC is 5.5V.
Each output channel of the RT9055-DGWSC can supply up to 300mA of current.
The RT9055-DGWSC operates within a temperature range of -40°C to 85°C.

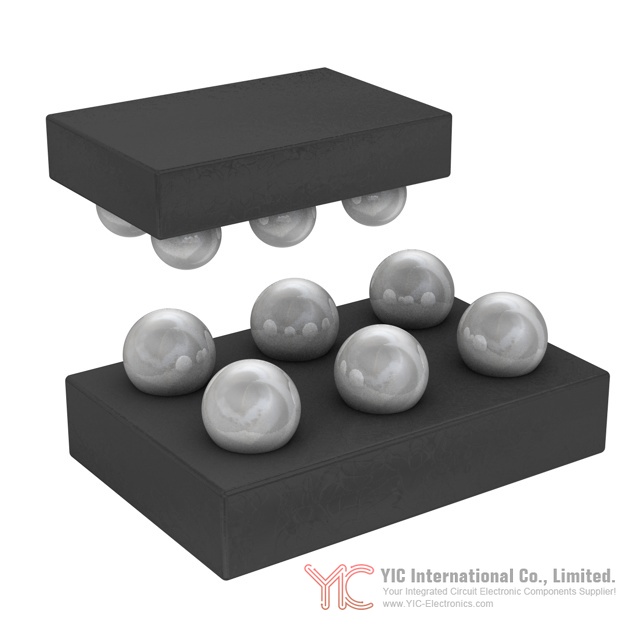

The RT9055-DGWSC is supplied in a 6-WLCSP package.
