| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
4,700 pcs
|
4700 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |

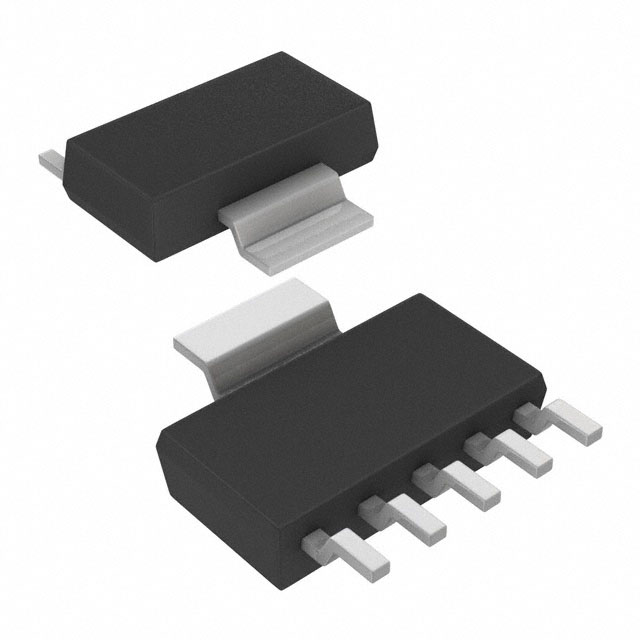

The RICHTEK RT9047GG5 is an adjustable positive linear voltage regulator designed for various power management applications. It provides a stable output voltage of 5.2V with a low quiescent current of 600 µA. The device offers protection features including over current and over temperature.
With a voltage dropout of 0.2V at 1A, the RT9047GG5 is suitable for applications requiring efficient voltage regulation. Its operating temperature range is -40°C to 85°C, making it robust for different environmental conditions. The regulator is housed in a SOT-223-5 surface mount package.
Key electrical characteristics include a PSRR of 55dB to 35dB across a frequency range of 100Hz to 10kHz. The output type is adjustable, and it features an enable control function. The component is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.40 | $23.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The output voltage is 5.2V.
The quiescent current is 600 µA.
It offers over current and over temperature protection.
The RT9047GG5 is available in a SOT-223-5 package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
