| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
3,238 pcs
|
3238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,854 pcs
|
1854 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
178 pcs
|
178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |
The RICHTEK RT9045GSP is a specialized linear regulator designed to generate termination voltage for DDR memory systems, ensuring compliance with device requirements. It is capable of sinking or sourcing up to 1.8A, with specific ratings for DDRII, DDRIII, LPDDRIII, and DDRIV interfaces.
This regulator features integrated power MOSFETs and is stable with output ceramic capacitors. It offers high accuracy output voltage at full load, with an output voltage tolerance of within 20mV. The output voltage can be adjusted using two external resistors or programmed by forcing the REFEN pin voltage. Other features include current limiting protection in both directions and on-chip thermal shutdown protection.
The RT9045GSP is ideal for applications such as desktop PCs, notebooks, workstations, and graphics card memory termination. It is supplied in an 8-SOP-EP package and is suitable for surface mount applications. The operating temperature range is -40°C to 85°C, and it operates within a voltage range of 1V to 5.5V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The RT9045GSP operates over a voltage range from 1V to 5.5V.
The RT9045GSP operates from -40°C to 85°C.

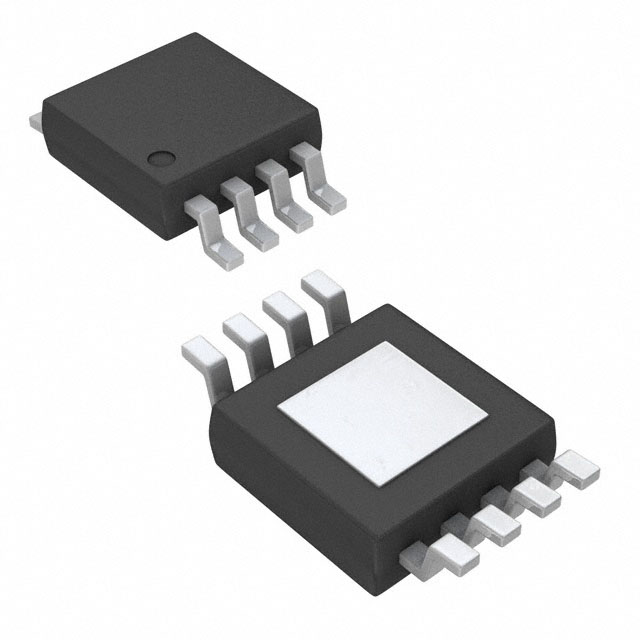

The RT9045GSP is available in an 8-SOP-EP package, which is an 8-SOIC (0.154", 3.90mm width) with exposed pad, surface mount.
The RT9045GSP provides 1.8A typical sink and source current for DDRII at VIN = 1.8V.
The RT9045GSP provides 1.5A typical sink and source current for DDRIII at VIN = 1.5V.
The RT9045GSP maintains an output voltage within ±20mV at full load.
The RT9045GSP has a single output.
