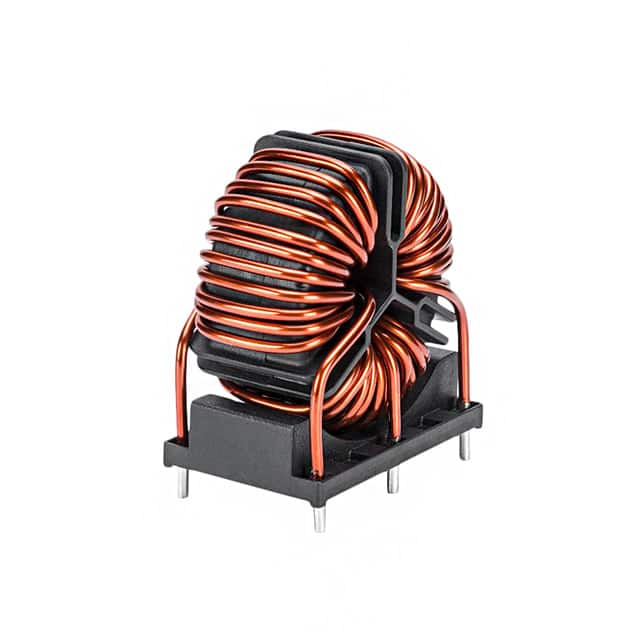

The Schaffner RT8532-12-3M6 is a common mode choke from the RT series, designed for filtering EMI noise on AC power lines up to 600 VAC. This component features a ferrite core and a 3-wire configuration, suitable for PCB integration.
Key electrical specifications include a maximum current rating of 12A and a rated inductance of 3.6 mH at 100 kHz. It operates within a temperature range of -40°C to 100°C and has a voltage rating of 600V. The choke is designed for through-hole mounting with a vertical, 6 PC pin package.
With a DC resistance of 12mOhm (typical) and a stray inductance of less than 1% of the rated inductance, this choke is built for reliable performance. It meets UL 94 V0 flammability standards and is designed according to UL/IEC 60938-1/-2 standards. The component has a high potential test voltage of 3 kV DC and an MTBF exceeding 2,000,000 hours.
This common mode choke is ideal for applications requiring EMI noise suppression in power supplies, inverters, and other electronic equipment. Its design facilitates straightforward PCB layout and offers ruggedized saturation and thermal behavior.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 3.6 mH at 100 kHz.
The rated current is 12 A at 60°C.
It has 3 lines.
The maximum operating voltage is 600V.
-40°C to +100°C.
Typical DC resistance is 12 mΩ.
The choke is available in a through-hole vertical 6-pin package.
