| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| SVHC Present | |
| Voltage | |
| Voltage Rating | |
| Width |

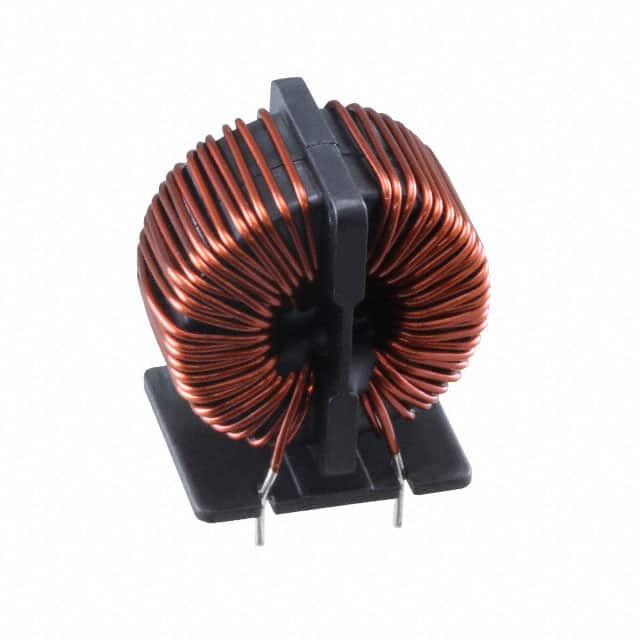

The Schaffner RT8522-12-5M0 is a common mode choke utilizing ferrite core technology for effective EMI noise filtering on AC power lines. It is designed for PCB integration and features a 2-line configuration with a rated inductance of 5 mH at 100 kHz and a maximum current rating of 12A.
This choke operates at frequencies from DC to 400 Hz and has a voltage rating of 300V. It is constructed with a Through Hole mounting type and a vertical, 4 PC pin package. The operating temperature range is -40°C to 100°C, and it meets flammability standards corresponding to UL 94 V0.
Common mode chokes like the RT8522-12-5M0 are crucial for suppressing electromagnetic interference (EMI) generated by electronic equipment, preventing disturbances to other devices. They are typically used in applications such as mid-size power range drives, photovoltaic inverters, fast chargers, EV charging stations, UPS, and switch mode power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 VAC (425 VDC) for 2-line configuration.
Vertical, 4 PC Pin through hole package.
-40°C to +100°C.
5 mH at 100 kHz.
Maximum 14 mOhm.
Designed to UL/IEC 60938-1/-2 and UL 94 V0 flammability.
Minimum 3.0 mm for 2-line configuration.
