| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Diameter | |
| Filter Type | |
| Height | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Rated Current | |
| Voltage | |
| Voltage Rating |

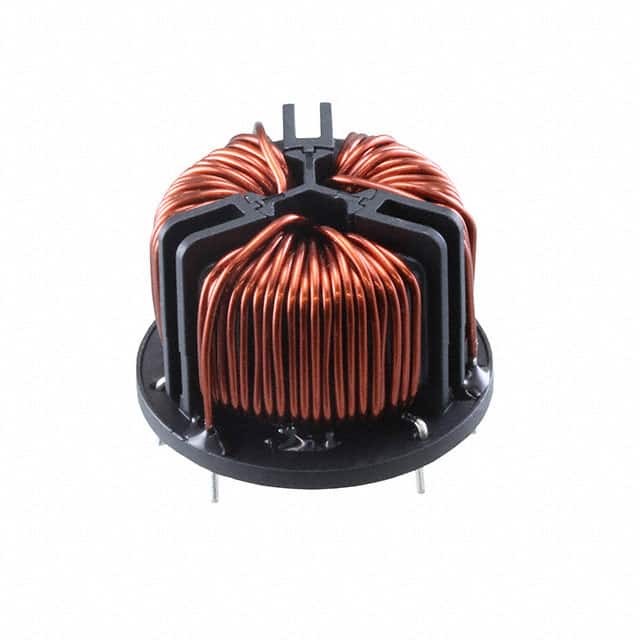

The Schaffner RT8132-12-3M6 is a current-compensated common mode choke utilizing ferrite core technology. It is designed for filtering EMI noise on AC power lines up to 600 VAC.
Key electrical specifications include a rated inductance of 3.6 mH at 100 kHz, a maximum current rating of 12A, and a typical DC resistance of 12mOhm. The choke operates within a temperature range of -40°C to 100°C and is rated for 600V.
This component features a through-hole mounting type with a horizontal, 6 PC pin package. It is designed for straightforward PCB integration. The RT series chokes are suitable for various applications including AC and DC filtering for midsize power range drives, photovoltaic inverters, and switch mode power supplies.
Environmental compliance includes RoHS3 compliance and a flammability rating of UL 94 V0. The operating altitude is up to 2000m, with current and voltage derating above this altitude.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600VAC (3-line).
Through hole, horizontal, 6 PC pin.
-40°C to +100°C (for 6 to 20 A versions).
3.6 mH at 100 kHz.
12A.
12 mOhm typical.
≥6.3 mm coil-coil and ≥5.5 mm coil-core.
