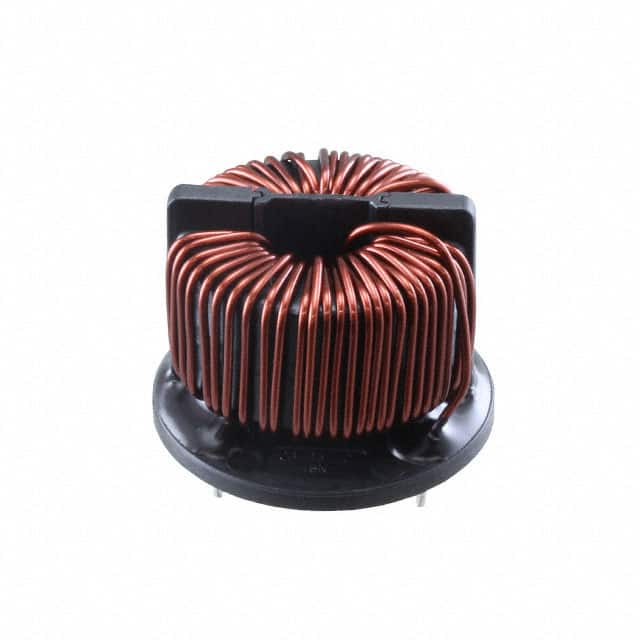

The Schaffner RT8122-12-5M0 is a current-compensated common mode choke utilizing ferrite core technology. It is designed for filtering EMI noise on AC power lines, suitable for applications up to 300 VAC.
Key electrical specifications include a maximum current rating of 12A and a rated inductance of 5 mH at 100 kHz. The choke features a DC resistance of 14 mOhm (typical) and is designed for through-hole mounting with a horizontal, 4 PC pin package.
With an operating temperature range of -40°C to 100°C and a flammability rating of UL 94 V0, this component is built for reliability. It is also specified with an altitude derating above 2000m.
Common applications include AC and DC filtering for mid-size power range drives, photovoltaic inverters, fast chargers, EV charging stations, UPS, and switch mode power supplies. It helps suppress EMI noise in PCB integrated filter designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 VAC (2-line) / 425 VDC.
-40°C to +100°C for 6 to 20 A ratings.
Through Hole, Horizontal, 4 PC Pin.
5 mH at 100 kHz.
12 A.
14 mOhm typical.
Power Line.
