RT8086BGQUF The RICHTEK RT8086BGQUF is a step-down buck converter designed for efficient power management. It offers an adjustable output and a 3.5A current capability.
Mfr Part #:

RT8086BGQUF

Available from 2 distributors
Mfr Name: Richtek
Richtek
The RICHTEK RT8086BGQUF is a step-down buck converter designed for efficient power management. It offers an adjustable output and a 3.5A current capability.
✓ Total Stock: 53,123 pcs
$ Price Range: $1.08

RT8086BGQUF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
47,673 pcs
On Request
47673 pcs On Request 1 On Request On Request 03+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
5,450 pcs
On Request
5450 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RT8086BGQUF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

RT8086BGQUF Description

Short technical summary and product information.

The RICHTEK RT8086BGQUF is a DC-DC switching regulator featuring a step-down (buck) topology. This component is designed for positive output configurations and provides an adjustable output voltage.



Key electrical specifications include a switching frequency of 1.2MHz and a maximum output current of 3.5A. The input voltage range is from 2.8V to 5.5V, with an adjustable output voltage ranging from 0.6V to 3.3V. It incorporates a synchronous rectifier for improved efficiency.

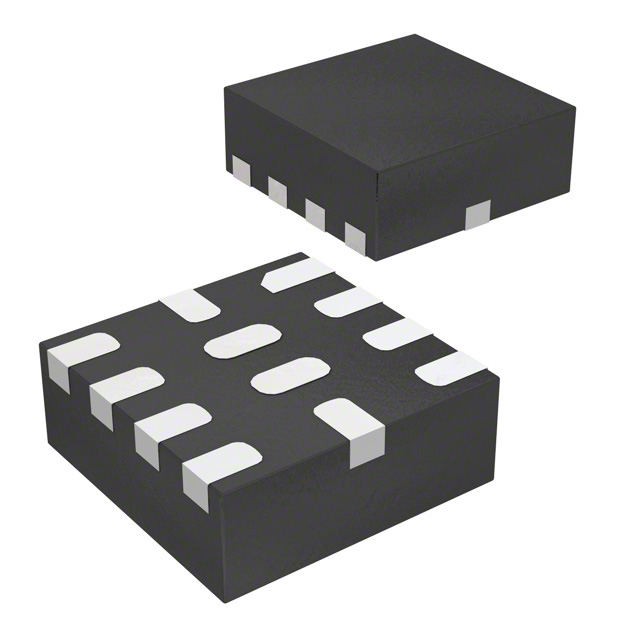

The RT8086BGQUF is housed in a 12-UQFN (2x2) package, suitable for surface mounting. The operating temperature range is -40°C to 85°C (TA). This device is classified under RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

RT8086BGQUF Quick Information

Product Type: DC-DC Converter
Canonical Name: RT8086BGQUF Buck Converter
Subcategory: Buck Converter

RT8086BGQUF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RT8086BGQUF Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

RT8086BGQUF Features

  • Step-down buck converter topology.
  • Adjustable output voltage capability.
  • 3.5A maximum output current.
  • 1.2MHz switching frequency.
  • Surface mount 12-UQFN package.

RT8086BGQUF Applications

  • Point-of-load regulation for low voltage rails.
  • Portable and battery-powered equipment.
  • Distributed power systems.
  • Networking and telecom equipment.

RT8086BGQUF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output current capability of the RT8086BGQUF?

The RT8086BGQUF has a maximum output current of 3.5A.

What is the switching frequency of the RT8086BGQUF?

The switching frequency for the RT8086BGQUF is 1.2MHz.

What is the input voltage range for the RT8086BGQUF?

The input voltage range for the RT8086BGQUF is from 2.8V to 5.5V.

What is the output voltage range of the RT8086BGQUF?

The RT8086BGQUF offers an adjustable output voltage ranging from 0.6V to 3.3V.

What is the operating temperature range for this DC-DC converter?

The operating temperature range for the RT8086BGQUF is -40°C to 85°C (TA).

What type of package is the RT8086BGQUF in?

The RT8086BGQUF is supplied in a 12-UQFN (2x2) package.
