| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
203,600 pcs
|
203600 pcs | On Request | 1 | On Request | On Request | 18/19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

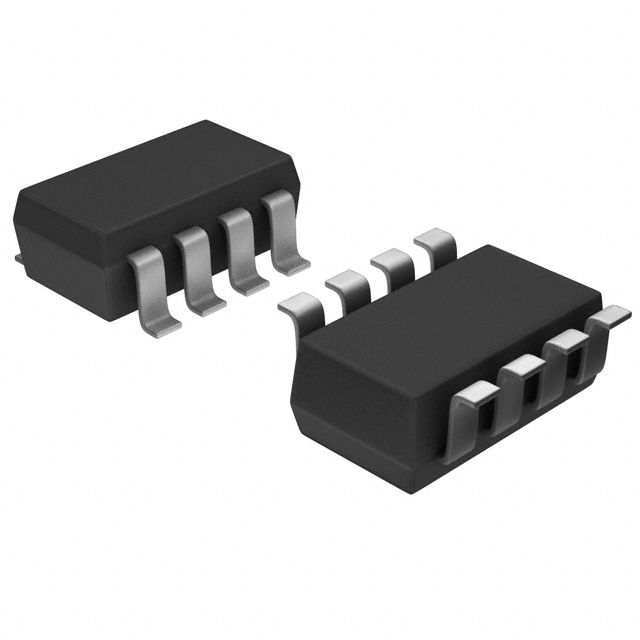

The RT6214AHRGJ8F is a synchronous step-down (buck) switching regulator IC from Richtek. It is designed to provide a regulated output voltage from a higher input voltage, with a single adjustable output. The device features a 500kHz fixed switching frequency, enabling the use of small external components while maintaining high efficiency. The synchronous rectifier topology improves efficiency by replacing the freewheeling diode with a low-resistance MOSFET, reducing power loss.
The regulator can deliver up to 3A of continuous output current, making it suitable for a variety of power supply applications. The output voltage is adjustable via external feedback resistors, allowing flexibility in design. The device operates over a wide temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments. The RT6214AHRGJ8F is housed in a compact TSOT-23-8 package (SOT-23-8), which is surface-mountable and suitable for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package is SOT-23-8 (TSOT-23-8).
-40°C to 85°C.
3A.
500kHz.
Yes.
Adjustable positive.
1.
