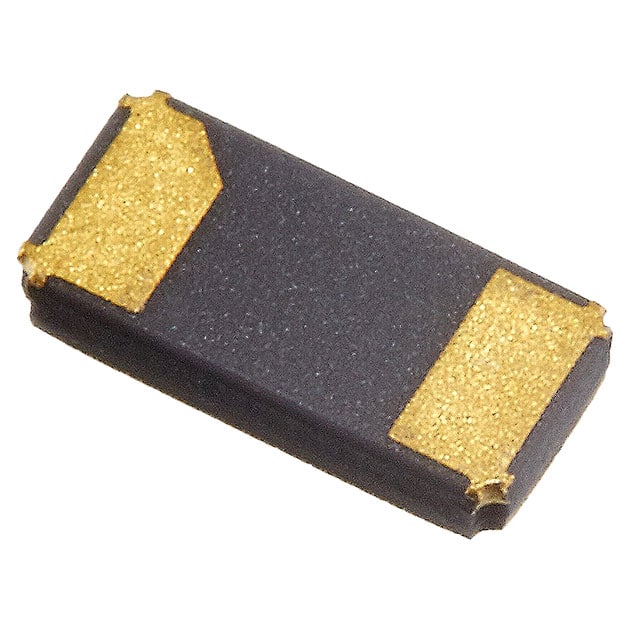

RT3215-32.768-12.5-TR The Raltron Electronics RT3215-32.768-12.5-TR is a kHz Crystal (Tuning Fork) operating at 32.768 kHz with a 12.5pF load capacitance. It features a surface mount package.
Mfr Part #:

RT3215-32.768-12.5-TR

Available from 1 distributors
Mfr Name: Raltron Electronics
Raltron Electronics
The Raltron Electronics RT3215-32.768-12.5-TR is a kHz Crystal (Tuning Fork) operating at 32.768 kHz with a 12.5pF load capacitance. It features a surface mount package.
✓ Total Stock: 1,140 pcs

RT3215-32.768-12.5-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,140 pcs
On Request
1140 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RT3215-32.768-12.5-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Tolerance
Halogen Free
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Type
Width
View Similar Products (0)

RT3215-32.768-12.5-TR Description

Short technical summary and product information.

This Raltron Electronics crystal, part number RT3215-32.768-12.5-TR, is a kHz Crystal (Tuning Fork) designed for electronic circuits requiring precise frequency control.



Key electrical specifications include a frequency of 32.768 kHz, a load capacitance of 12.5pF, and a frequency tolerance of ±20ppm. The crystal has an Equivalent Series Resistance (ESR) of 70 kΩ and operates in the fundamental mode.



Designed for surface mounting, this component has a compact mechanical profile with dimensions of 3.20mm in length, 1.50mm in width, and a height of 0.90mm. It is housed in a 2-SMD, No Lead package.



The operating temperature range for this crystal is -40°C to 85°C, making it suitable for a variety of environmental conditions.

RT3215-32.768-12.5-TR Quick Information

Product Type: Crystal
Series: RT3215
Canonical Name: Raltron Electronics RT3215-32.768-12.5-TR Crystal
Subcategory: kHz Crystal (Tuning Fork)

RT3215-32.768-12.5-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RT3215-32.768-12.5-TR Features

  • Frequency of 32.768 kHz
  • Load capacitance of 12.5pF
  • Frequency tolerance of ±20ppm
  • Surface mount 2-SMD package
  • Operating temperature -40°C to 85°C

RT3215-32.768-12.5-TR Applications

  • Real-time clock circuits
  • Low power microcontrollers
  • Timing reference applications
  • Embedded systems

RT3215-32.768-12.5-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this crystal?

-40°C ~ 85°C

What is the load capacitance of the RT3215-32.768-12.5-TR?

12.5pF

What is the frequency tolerance of this crystal?

±20ppm

What type of crystal is the RT3215-32.768-12.5-TR?

kHz Crystal (Tuning Fork)

What are the dimensions of this crystal?

3.20mm (Length) x 1.50mm (Width) x 0.90mm (Height)

What is the ESR of the RT3215-32.768-12.5-TR?

70 kΩ

What is the mounting type for this component?

Surface Mount
