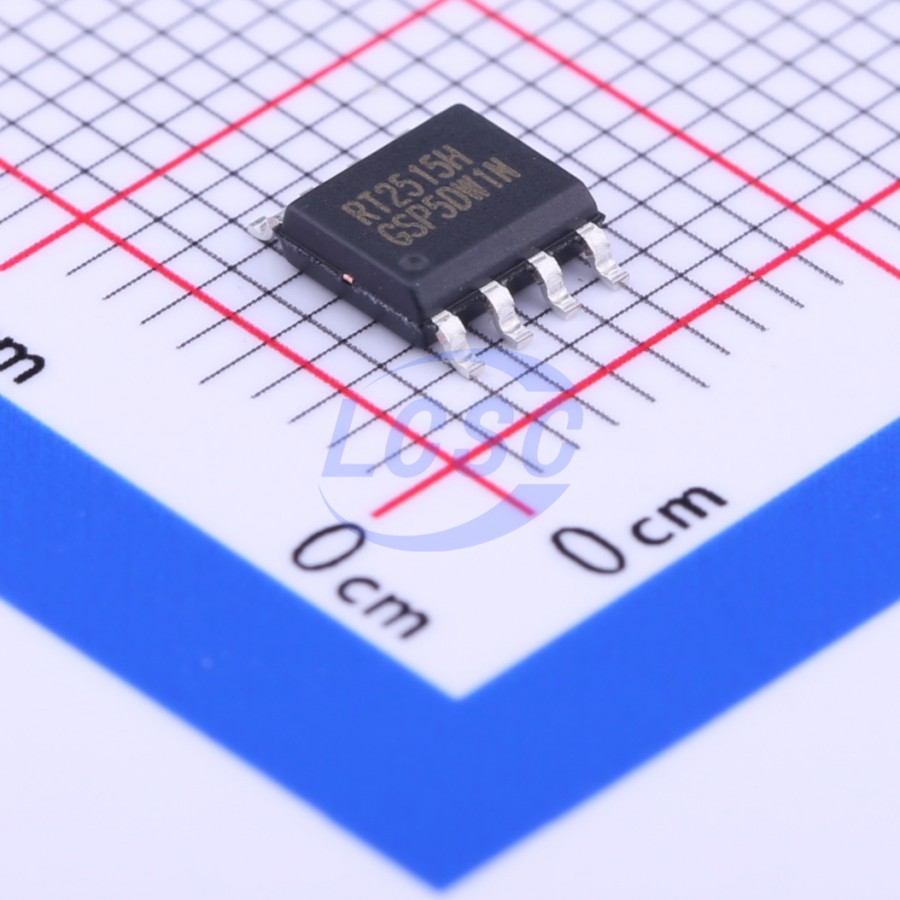

RT2515HGSP The Richtek RT2515HGSP is an LDO Voltage Regulator featuring an adjustable output voltage range of 0.9V to 5.5V and a maximum output current of 2A. It is supplied in a SOP-8 EP 150mil package.
Mfr Part #:

RT2515HGSP

Available from 3 distributors
Mfr Name: Richtek
Richtek
The Richtek RT2515HGSP is an LDO Voltage Regulator featuring an adjustable output voltage range of 0.9V to 5.5V and a maximum output current of 2A. It is supplied in a SOP-8 EP 150mil package.
✓ Total Stock: 7,365 pcs

RT2515HGSP Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
4,715 pcs
On Request
4715 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,751 pcs
On Request
1751 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
899 pcs
On Request
899 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RT2515HGSP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Maximum Input Voltage
Number of Outputs
Operating Temperature
Output Current
Output Type
Output Voltage
Voltage Dropout (Max)
View Similar Products (0)

RT2515HGSP Description

Short technical summary and product information.

The Richtek RT2515HGSP is a Low Dropout (LDO) Voltage Regulator designed for power management applications. It offers an adjustable output voltage that can be set anywhere between 0.9V and 5.5V, with a maximum output current capability of 2A. This device features a low dropout voltage of 400mV at 2A and a maximum input voltage of 6V.



The RT2515HGSP is housed in a SOP-8 EP 150mil package, suitable for surface mounting. Its operating temperature range is from -40°C to 85°C. The regulator provides a positive output polarity and has a maximum supply current of 10uA.



This component is suitable for various electronic designs requiring stable and adjustable voltage regulation. Its specifications make it a versatile choice for applications needing efficient power delivery within the specified voltage and current limits.

RT2515HGSP Quick Information

Product Type: LDO Voltage Regulator
Series: RT2515
Canonical Name: RT2515HGSP LDO Voltage Regulator
Subcategory: Voltage Regulators & Voltage Controllers

RT2515HGSP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RT2515HGSP Features

  • Adjustable output voltage from 0.9V to 5.5V.
  • Maximum output current of 2A.
  • Low dropout voltage of 400mV at 2A.
  • SOP-8 EP 150mil package for surface mounting.
  • Wide operating temperature range of -40°C to 85°C.

RT2515HGSP Applications

  • Power management in electronic devices.
  • Adjustable voltage regulation circuits.
  • Systems requiring up to 2A current.
  • Portable electronic equipment designs.

RT2515HGSP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the RT2515HGSP?

The output voltage is adjustable from 0.9V to 5.5V.

What is the package type of the RT2515HGSP?

The package is SOP-8 EP 150mil.

What is the operating temperature range?

-40°C to 85°C.

What is the dropout voltage at 2A?

400mV typical at 2A.

What is the maximum input voltage?

6V.

What is the output current capability?

2A.

What is the quiescent current?

10µA typical.
