Mfr Part #:

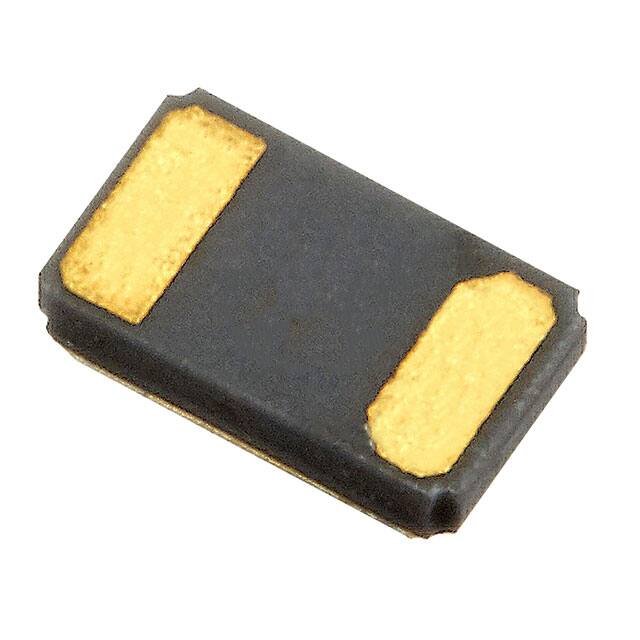

RT2012-32.768-12.5-TR-NS1

Raltron RT2012 series 32.768 kHz tuning fork crystal. Features ±20 ppm frequency tolerance, 12.5 pF load capacitance, 70 kΩ max ESR, and operates from -40°C to +85°C.

✓ Total Stock: 900 pcs

$ Price Range: $0.25 - $0.44

RT2012-32.768-12.5-TR-NS1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	900 pcs On Request	900 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

RT2012-32.768-12.5-TR-NS1 Description

Short technical summary and product information.

The RT2012-32.768-12.5-TR-NS1 is a 32.768 kHz tuning fork crystal manufactured by Raltron Electronics. It has a nominal frequency of 32.768 kHz with a frequency tolerance of ±20 ppm at 25°C. The crystal is designed for a load capacitance of 12.5 pF and exhibits a maximum equivalent series resistance (ESR) of 70 kΩ. Additional electrical characteristics include a maximum drive level of 0.5 µW, a shunt capacitance of 1.5 pF, and insulation resistance of 500 MΩ minimum. The aging is limited to ±3 ppm in the first year. The crystal operates over a temperature range of -40°C to +85°C and can be stored between -55°C and +125°C. It is housed in a compact 2-SMD, No Lead package measuring 2.0 mm x 1.2 mm x 0.6 mm and is designed for surface mount assembly. The part is RoHS 5/6 compliant with Exemption 7a, REACH SVHC compliant, and Halogen-Free. Moisture sensitivity level is MSL Level 1. The termination finish is tin (Sn).

RT2012-32.768-12.5-TR-NS1 Quick Information

Product Type: kHz Crystal (Tuning Fork)

Series: RT2012

Canonical Name: Raltron RT2012 Series 32.768 kHz ±20 ppm 12.5 pF SMD Tuning Fork Crystal

Subcategory: kHz Crystals

RT2012-32.768-12.5-TR-NS1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level 1

REACH Status: Compliant

Lead Free: Yes

RT2012-32.768-12.5-TR-NS1 Estimated Pricing

Qty	Low	High
1+	$0.44	$0.44
10+	$0.39	$0.39
25+	$0.36	$0.36
50+	$0.35	$0.35
100+	$0.34	$0.34
250+	$0.32	$0.32
500+	$0.30	$0.30
1,000+	$0.29	$0.29
3,000+	$0.27	$0.27
6,000+	$0.26	$0.26
9,000+	$0.25	$0.25
15,000+	$0.25	$0.25
21,000+	$0.25	$0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

RT2012-32.768-12.5-TR-NS1 Features

32.768 kHz nominal frequency tuning fork crystal.
±20 ppm frequency tolerance at 25°C.
12.5 pF load capacitance requirement.
Compact 2.0 x 1.2 mm SMD package.
RoHS and REACH compliant.

RT2012-32.768-12.5-TR-NS1 Applications

Provides accurate timekeeping for RTC modules.
Ideal for low-power and portable devices.
Supports fundamental mode precision timing.

RT2012-32.768-12.5-TR-NS1 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range?

-40°C to +85°C.

What is the package type?

2-SMD, No Lead, with dimensions 2.0 mm x 1.2 mm x 0.6 mm.

Is the crystal RoHS compliant?

Yes, RoHS 5/6 compliant with Exemption 7a.

What is the nominal frequency?

32.768 kHz.

What load capacitance is required?

12.5 pF.

What is the maximum equivalent series resistance (ESR)?

70 kΩ.

What is the storage temperature range?

-55°C to +125°C.

Category	Crystals
Manufacturer Name	Raltron Electronics
ESR (Equivalent Series Resistance)	70 kΩ
Frequency	32.768 kHz
Frequency Tolerance	±20 ppm
Halogen Free	Yes
Height	0.60mm
Insulation Resistance	500 MΩ
Length	2.00mm
Load Capacitance	12.5 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature	-40°C to +85°C
SVHC Present	Not Present
Storage Temperature	-55.0°C ~ 125.0°C
Tape & Reel	Yes
Termination Finish	Sn
Type	kHz Crystal (Tuning Fork)
Width	1.20mm
