| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

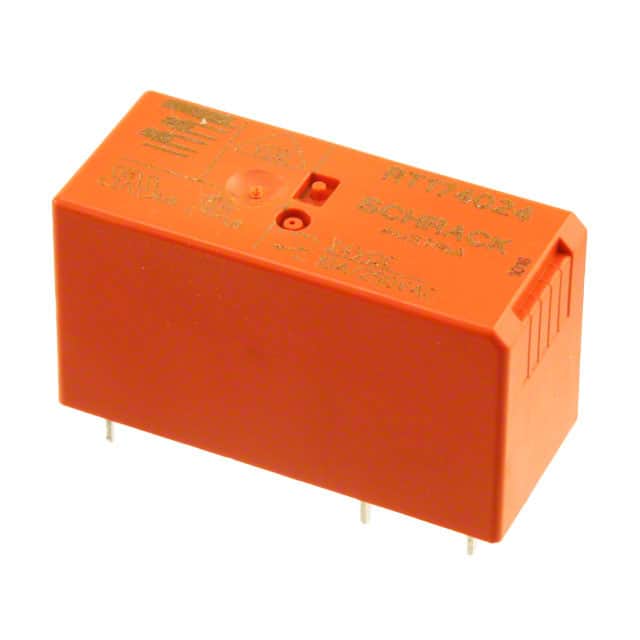

The TE Connectivity RT174024 is a general-purpose, non-latching power relay designed for PCB mounting. It features a 1 Form C (SPDT) contact arrangement capable of switching up to 10A at 250VAC and a maximum switching voltage of 400VAC. The relay operates with a 24VDC coil, requiring a minimum of 18VDC to operate and dropping out below 2.4VDC, with a coil power consumption of 250mW.
With a contact material of Silver Nickel (AgNi), this relay offers a mechanical endurance exceeding 30 million operations. It operates within a temperature range of -40°C to 85°C. The relay is sealed for flux protection and features Class F coil insulation. Its robust construction and specifications make it suitable for applications such as domestic appliances and heating control systems.
The RT174024 is designed for through-hole mounting with PC pin termination, ensuring secure placement on printed circuit boards. Its high dielectric strength between contact and coil (5000Vrms) and between open contacts (1000Vrms) contribute to its reliability and safety in various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The relay has a contact rating of 10A at 250VAC.
The coil voltage is 24VDC.
It features a 1 Form C (SPDT) contact arrangement.
The operating temperature range is -40°C to 85°C.
It is designed for through-hole mounting.
