Mfr Part #:

RT1715WSC

Mfr Name: Richtek

The RICHTEK RT1715WSC is a programmable USB Type-C PD controller supporting PD2.0 and PD3.0 standards. It features a Dual Role Power (DRP) capability and an I2C interface.

✓ Total Stock: 2,505 pcs

$ Price Range: $3.65

RT1715WSC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	2,505 pcs On Request	2505 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

RT1715WSC Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Controllers
Manufacturer Name	Richtek
Function	Controller
Interface	I2C
Protocol	USB

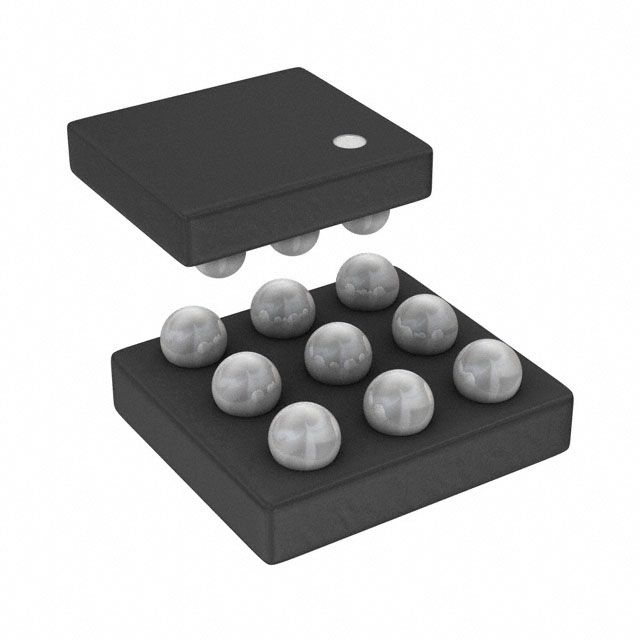

Supplier Device Package	9-WLCSP (1.38x1.34)
Supplier Package	9-WLCSP (1.38x1.34)
Voltage	2.7V ~ 5.5V

View Similar Products (0)

RT1715WSC Description

Short technical summary and product information.

The RICHTEK RT1715WSC is a programmable USB Type-C and Power Delivery (PD) controller designed for modern power management applications. It complies with the latest USB Type-C and PD standards, integrating a complete Type-C transceiver with Rp and Rd resistors for USB Type-C detection, including attach and orientation.

This controller integrates the physical layer of the USB BMC power delivery protocol, enabling power delivery up to 100W and supporting role swap functionality. The BMC PD block ensures full support for alternative interfaces defined in the Type-C specification. Key electrical specifications include an operating voltage range of 2.7V to 5.5V, an I2C interface for communication, and a Dual Role Power (DRP) capability. It also supports VCONN at 5V/200mA and features real-time VBUS monitoring and dead battery support.

The RT1715WSC is housed in a compact 9-WLCSP (1.38x1.34) package, making it suitable for space-constrained designs. Its features include dual-role PD compatibility, attach/detach detection as host, device, or DRP, and programmable overcurrent protection (OCP) for VCONN. The device is designed for applications such as smartphones, tablets, and laptops, providing robust USB Type-C and PD control.

This controller offers a simple I2C interface for easy integration with application processors (AP) or embedded controllers (EC). It also supports BIST mode and is designed for efficient operation with a typical quiescent current of 25μA.

RT1715WSC Quick Information

Product Type: USB Type-C PD Controller

Canonical Name: RICHTEK RT1715WSC Programmable USB Type-C PD Controller

Subcategory: Controllers

RT1715WSC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RT1715WSC Estimated Pricing

Qty	Low	High
1+	$3.65	$3.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

RT1715WSC Features

Programmable USB Type-C PD controller
Supports PD2.0 and PD3.0 standards
Dual Role Power (DRP) capability
I2C interface for system integration
Compact 9-WLCSP package

RT1715WSC Applications

Ideal for smartphones and tablets
Suitable for laptop power management
Enables advanced USB Type-C functionality
Supports 100W power delivery

RT1715WSC FAQs

6 frequently asked questions generated from this part’s specifications.

What USB Power Delivery versions does the RT1715WSC support?

The RT1715WSC supports PD2.0 and PD3.0 versions.

What is the operating voltage range for the RT1715WSC?

The operating voltage range is 2.7V to 5.5V.

What interface does the RT1715WSC use for communication?

The RT1715WSC uses an I2C interface.

What is the package type for the RT1715WSC?

The RT1715WSC is available in a 9-WLCSP (1.38x1.34) package.

Does the RT1715WSC support Alternate Modes?

Yes, the RT1715WSC supports Alternate Mode.

What is the typical quiescent current (Iq) of the RT1715WSC?

The typical quiescent current (Iq) is 25μA.
