| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

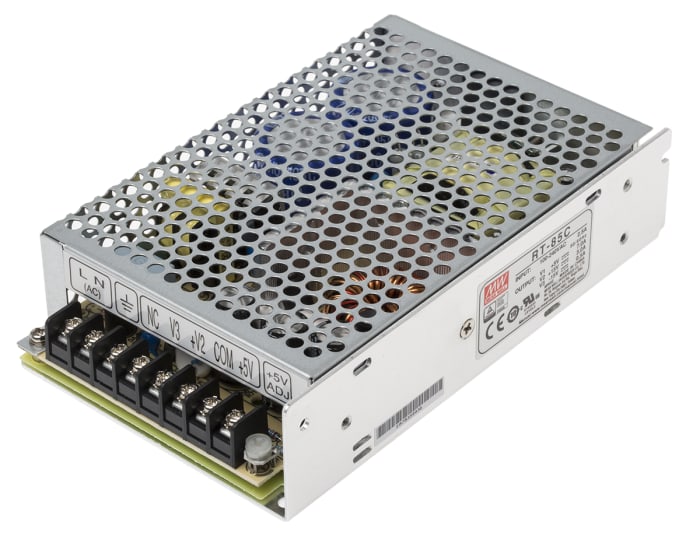

The Mean Well RT-85C is an enclosed, triple output AC/DC converter designed for chassis mounting. It delivers a total power of 87.5W, with outputs of 5V, +15V, and -15V. The unit accepts a wide universal input voltage range from 88 to 264VAC or 125 to 373VDC, making it suitable for global applications.
Key electrical specifications include a typical efficiency of 77% and an adjustable output voltage range for the primary 5V output. Protection features include overload and over-voltage protection with a hiccup mode.
Designed for industrial environments, the RT-85C operates within a temperature range of -25°C to 70°C with derating. It meets various safety standards including UL62368-1 and EN62368-1, and complies with EMC standards like EN55032 Class B.
The RT-85C provides three outputs: CH1 5V at 8A, CH2 15V at 3.5A, and CH3 -15V at 0.5A.
The AC input range is 88 to 264VAC and the DC input range is 125 to 373VDC.
The operating temperature range is -25°C to +70°C.
It complies with UL62368-1, TUV EN62368-1, CSA C22.2 No. 62368-1, and others.
Typical efficiency is 77%.
MTBF is 215,000 hours minimum per MIL-HDBK-217F at 25°C.
Dimensions are 159.0mm x 97.0mm x 38.0mm (6.26" x 3.82" x 1.50").
