| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

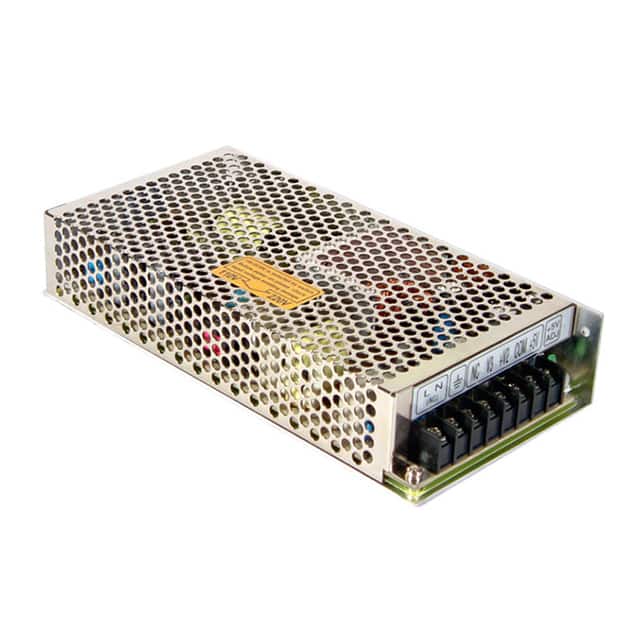

The Mean Well USA RT-125D is a versatile AC/DC converter designed for ITE (Commercial) applications. This enclosed unit offers a robust power output of 136W and is designed for chassis mounting.
Key electrical specifications include an input voltage range of 110-240VAC and a frequency range of 47-63Hz. The RT-125D provides multiple outputs, with Channel 1 rated for 12A, Channel 2 for 12A, and Channel 3 for 5A. The adjustable output voltage range for Channel 1 is 4.75-5.5V. It boasts a typical efficiency of 82% and features overload protection that operates in hiccup mode, recovering automatically.
Environmental considerations include an operating temperature range of -25°C to +70°C (with derating) and a working humidity range of 20-90% RH non-condensing. The unit meets various safety standards, including UL62368-1 and TUV EN62368-1, and complies with EMC standards such as EN55032 Class B and EN61000-4-2,3,4,5,6,8,11.
With dimensions of 199mm x 98mm x 38mm, the RT-125D is suitable for integration into various equipment. Its design incorporates features like adjustable output and chassis mounting, making it a practical choice for power supply needs.
The RT-125D provides three outputs: 5V on Channel 1, 24V on Channel 2, and 12V on Channel 3.
The total output power is 136W.
The operating temperature range is -25°C to +70°C with derating.
It complies with UL62368-1, TUV EN62368-1, and BS EN/EAC TP TC 004.
Typical efficiency is 78% at full load.
The RT-125D is designed for chassis mount.
