| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
757 pcs
|
757 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Voltage (DC) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

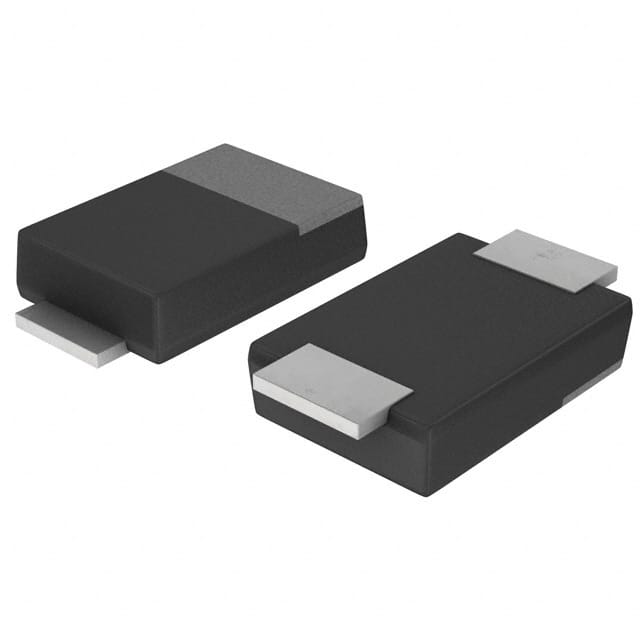

The RSX501LA-20TR is a Schottky rectifier diode from ROHM Semiconductor designed for high-efficiency power conversion. It features a reverse voltage rating of 20 V DC and an average rectified current of 5 A. The forward voltage is typically 390 mV at 3 A, enabling low conduction losses. The reverse recovery time is 500 ns maximum, suitable for fast switching applications.
The diode is housed in a surface mount SOD-128 package with supplier device package PMDT, allowing compact PCB layouts. It operates over a temperature range up to 125 °C. The device is RoHS3 compliant, MSL level 1 (unlimited), and REACH unaffected, though these compliance claims are unverified.
Typical applications include power supply rectification, DC-DC converter freewheeling diodes, and reverse polarity protection circuits. The Schottky technology provides low forward voltage drop and fast switching, making it ideal for high-frequency designs.
20 V DC.
5 A.
390 mV typical at 3 A.
500 ns maximum at IF > 200 mA.
SOD-128 surface mount package with supplier device package PMDT.
125 °C.
Schottky diode.
