| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Isolation Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

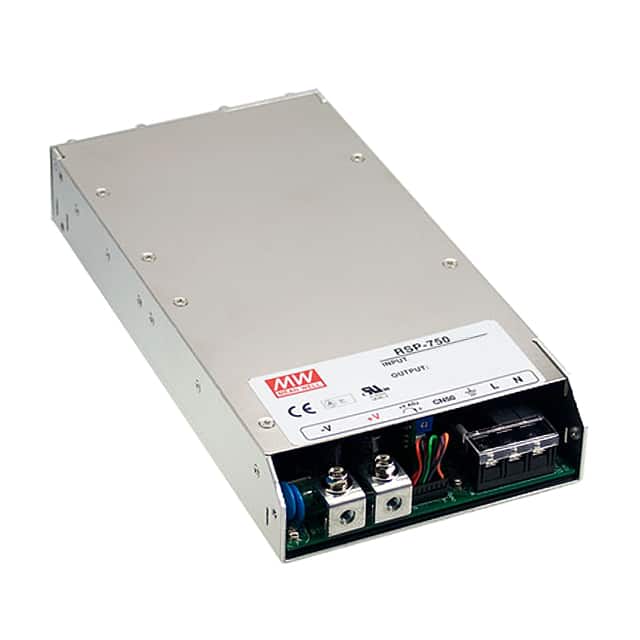

The Mean Well USA RSP-750-48 is a high-efficiency enclosed AC/DC converter designed for commercial ITE applications. It delivers a single 48V output at 15.7A with a total power of 754W and achieves up to 92% efficiency.
Key electrical specifications include universal input voltage, 3kV isolation voltage, and built-in power factor correction (PFC). The unit supports adjustable output voltage and remote on/off control, making it suitable for a variety of power supply designs.
The converter is chassis-mountable with dimensions of 250.0mm x 127.0mm x 41.0mm (9.84" x 5.00" x 1.61"). It operates over a temperature range of -30°C to 70°C with derating. Safety approvals include CB, CE, cURus, and TUV.
The output voltage is 48V and the output current is 15.7A.
The operating temperature range is -30°C to 70°C with derating.
RoHS status is listed as RoHS3 Compliant but is unverified.
It uses chassis mount mounting.
It has CB, CE, cURus, and TUV approvals.
