| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

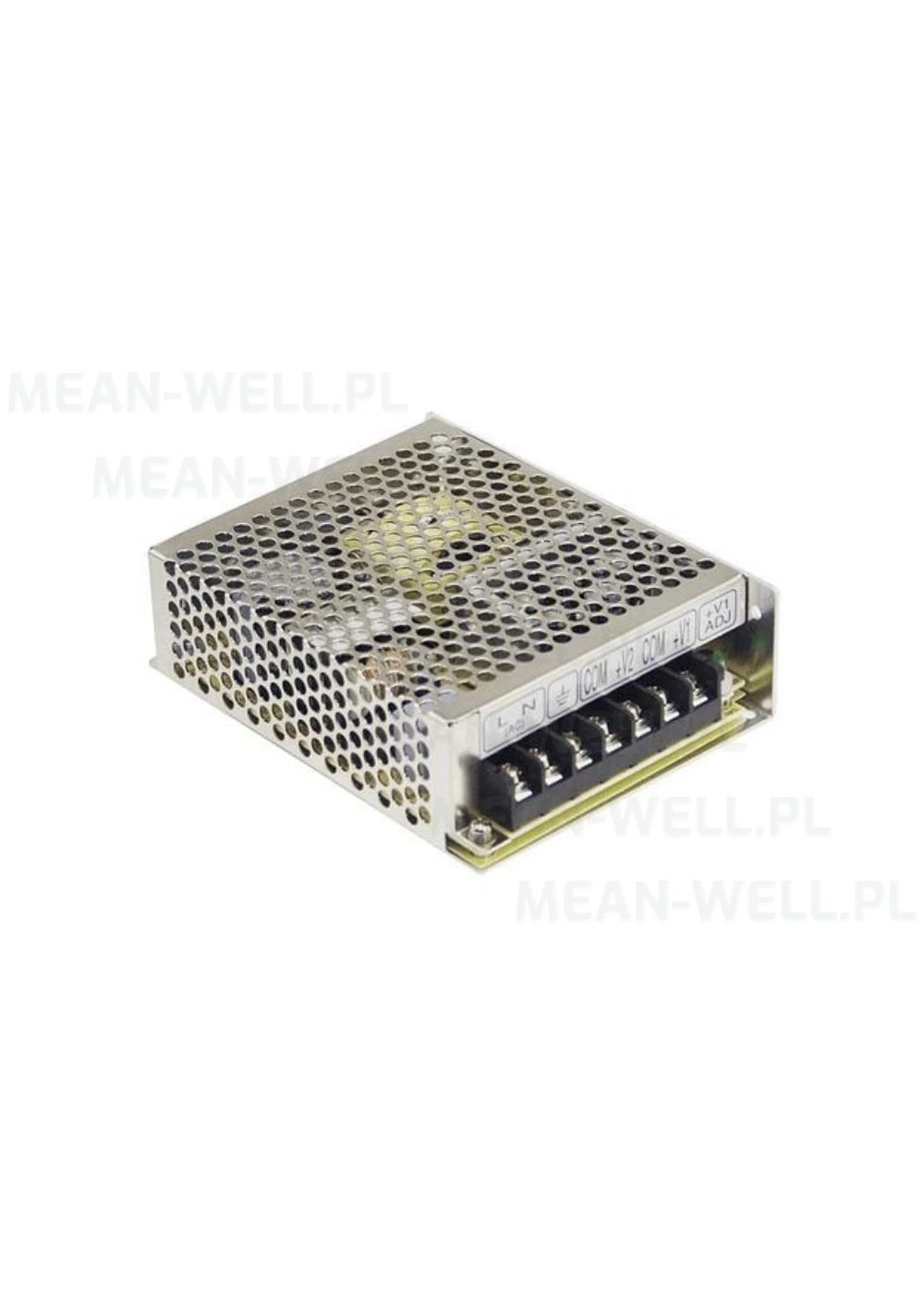

The Mean Well USA RSP-75-48 is a versatile AC/DC converter designed for ITE (Commercial) applications. This enclosed unit features a chassis mount and a universal input voltage range, making it suitable for various industrial environments.
Key electrical specifications include a power output of 77W and a current rating of 1.6A. The converter boasts an efficiency of 89% and includes features such as adjustable output, Power Factor Correction (PFC), and remote on/off control. It also provides 4 kV of voltage isolation.
The operating temperature range is -25°C to 70°C with derating. Its dimensions are 159.0mm in length, 97.0mm in width, and 30.0mm in height. The RSP-75-48 is approved by CB, CCC, CE, cURus, and TUV, ensuring compliance with various safety standards.
This model is part of the RSP series, known for high-performance and high-capacity power supplies. It is suitable for high-end equipment and medical devices.
-25°C to 70°C with derating.
Chassis mount.
89%.
4 kV.
1.
1.6 A.
CB, CCC, CE, cURus, TUV.
