Mfr Part #:

RSP-150-12

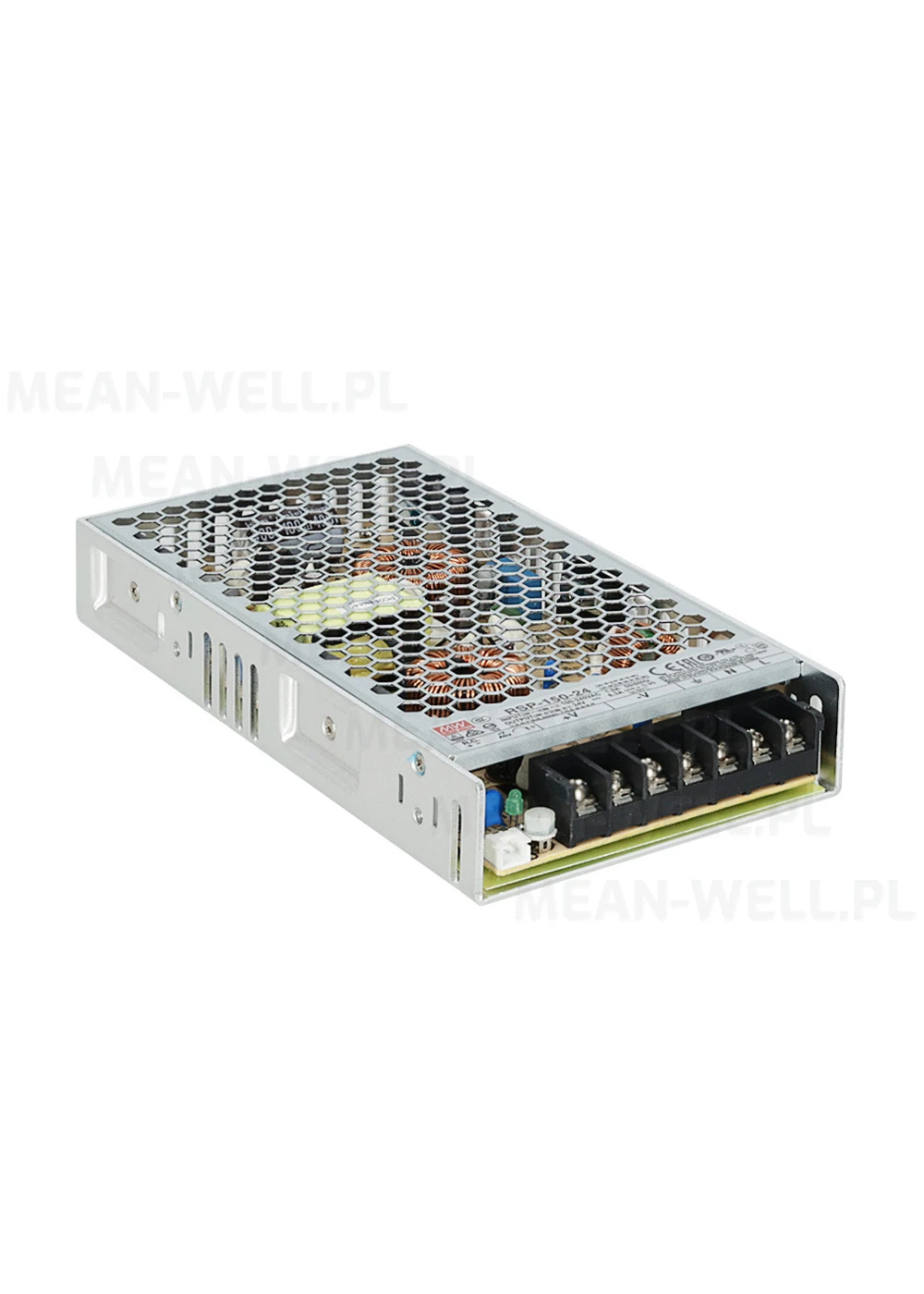

The Mean Well USA RSP-150-12 is a 150W AC/DC converter with a 12.5A output current and 90% efficiency. It features adjustable output, PFC, and remote on/off capabilities.

Stock on Request

RSP-150-12 Description

Short technical summary and product information.

The Mean Well USA RSP-150-12 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 150W of power with a single output of 12.5A.

Key electrical specifications include a high efficiency of 90% and universal input capability. The unit features adjustable output, Power Factor Correction (PFC), and remote on/off control, making it versatile for various system designs.

This converter is designed for chassis mounting and operates within a temperature range of -30°C to +70°C, with derating applied. It also includes 4kV of isolation voltage.

The RSP-150-12 is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, indicating adherence to environmental standards.

RSP-150-12 Quick Information

Product Type: AC DC Converter

Series: RSP

Canonical Name: Mean Well USA RSP-150-12 AC/DC Converter

Subcategory: Enclosed

RSP-150-12 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

RSP-150-12 Features

150W enclosed AC/DC power converter.
12.5A output current at 12V.
90% efficiency for optimal power usage.
Features adjustable output and PFC.
Chassis mount for easy integration.

RSP-150-12 Applications

Suitable for ITE commercial applications.
Ideal for systems needing adjustable output.
Remote on/off control simplifies operation.
Wide operating temperature range.

RSP-150-12 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the Mean Well RSP-150-12?

The converter provides a 12V DC output at 12.5A, delivering 150W.

What is the operating temperature range?

-30°C to 70°C with derating.

What approvals does the RSP-150-12 hold?

CB, CCC, CE, cURus, TUV.

What is the efficiency?

90%.

What is the isolation voltage?

4 kV.

What is the mounting type?

Chassis mount.

What are the dimensions?

199.0mm x 99.0mm x 30.0mm.

Category	AC DC Converters
Manufacturer Name	Mean Well USA
AEC Qualified	No
Applications	ITE (Commercial)
Approval Agency	CB, CCC, CE, cURus, TUV
Automotive Grade	No
Current	12.5 A
Efficiency	90%
Features	Adjustable Output, PFC, Remote On/Off, Universal Input
Height	30.0mm (1.18")
Industrial Grade	Yes
Length	199.0mm (7.83")
Medical Grade	No
Military Grade	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 70°C (With Derating)
Power (Watts)	150W
Type	Enclosed
Voltage	4 kV
Width	99.0mm (3.90")
