| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage - Isolation | |
| Width |

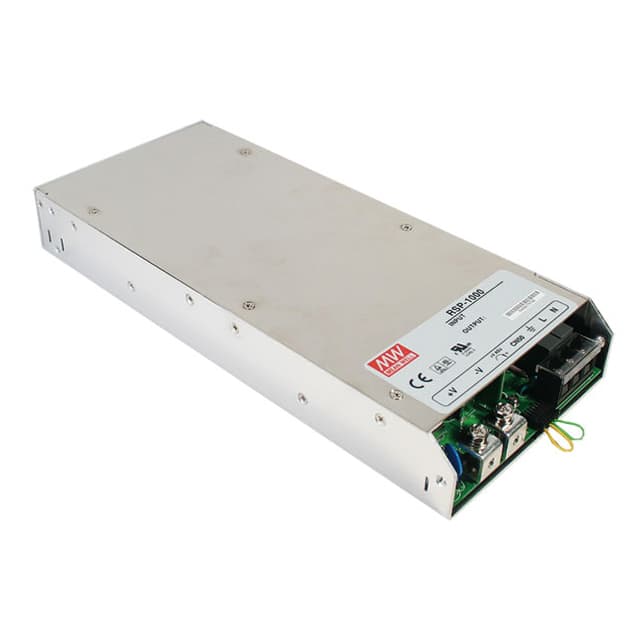

The RSP-1000-48 is an enclosed AC DC converter from Mean Well USA. It provides a single output of 48V at 21A with a total power rating of 1000W. The unit features a chassis mount design, making it suitable for rugged installations. Key electrical characteristics include 90% efficiency, built-in power factor correction (PFC), remote on/off control, and adjustable output voltage. The input is universal, though the specific input voltage range is not listed. The converter is isolated with 3kV input-to-output isolation. It operates over a temperature range of -20°C to 60°C with derating. The unit measures 295mm x 127mm x 41mm (11.61" x 5.00" x 1.61"). The RSP-1000-48 is intended for ITE (commercial) applications and holds approvals from CB, CE, cURus, and TUV. It is listed as RoHS3 compliant, REACH unaffected, and has MSL 1 (unlimited), though these compliance statuses are unverified.
48V.
21A.
1000W.
-20°C to 60°C with derating.
RoHS3 Compliant (unverified, treat as low confidence).
295mm x 127mm x 41mm (11.61" x 5.00" x 1.61").
90%.
