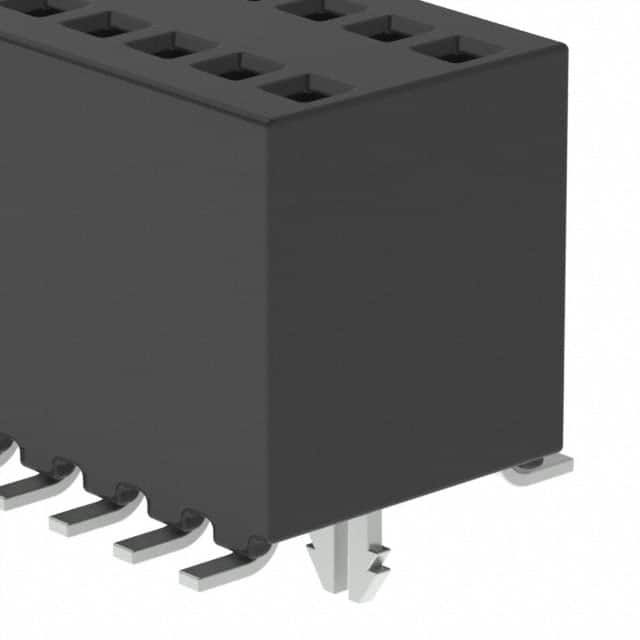

RSM-113-02-L-D-LC The SMT RSM-113-02-L-D-LC is a 26-position receptacle connector with a 0.050" mating pitch. It is designed for surface mount applications.
Mfr Part #:

RSM-113-02-L-D-LC

Available from 1 distributors
Mfr Name: SMT
SMT
The SMT RSM-113-02-L-D-LC is a 26-position receptacle connector with a 0.050" mating pitch. It is designed for surface mount applications.
✓ Total Stock: 244 pcs

RSM-113-02-L-D-LC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
244 pcs
On Request
244 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RSM-113-02-L-D-LC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness - Mating
Contact Material
Contact Type
Current Rating
Failure Rate
Features
Insulation Color
Insulation Height
Insulation Material
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch - Mating
SVHC Present
Termination
View Similar Products (0)

RSM-113-02-L-D-LC Description

Short technical summary and product information.

The SMT RSM-113-02-L-D-LC is a high-density receptacle connector from the RSM series, designed for board-to-board applications. It features 26 positions arranged in two rows with a mating pitch of 0.050 inches (1.27mm) and a row spacing of 0.100 inches (2.54mm).



This connector is designed for surface mounting and offers a current rating of 3.1A per contact. The female socket contacts are made of phosphor bronze with a gold mating finish, ensuring reliable connections. The insulation material is Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the insulation height is 0.240 inches (6.10mm).



Key features include board lock and pick-and-place capabilities, making it suitable for automated assembly processes. The operating temperature range is -55°C to 125°C. This receptacle is a robust solution for compact electronic designs requiring high-density interconnects.

RSM-113-02-L-D-LC Quick Information

Product Type: Receptacle
Series: RSM
Canonical Name: SMT RSM-113-02-L-D-LC Receptacle, 26 Positions, 0.050" Pitch
Subcategory: Rectangular Connectors

RSM-113-02-L-D-LC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RSM-113-02-L-D-LC Features

  • 26 positions in two rows.
  • 0.050 inch mating pitch.
  • Surface mount termination style.
  • 3.1A current rating per contact.
  • Phosphor bronze contacts with gold finish.

RSM-113-02-L-D-LC Applications

  • Ideal for compact board-to-board connections.
  • Suitable for automated assembly processes.
  • Used in high-density electronic devices.
  • Reliable interconnect for demanding applications.

RSM-113-02-L-D-LC FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the RSM-113-02-L-D-LC connector have?

The RSM-113-02-L-D-LC connector has 26 positions.

What is the pitch of the RSM-113-02-L-D-LC connector?

The mating pitch is 0.050" (1.27mm) and the row spacing is 0.100" (2.54mm).

What is the current rating per contact for this connector?

The current rating is 3.1A per contact.

What type of mounting is supported by the RSM-113-02-L-D-LC?

It supports surface mount type.

What are the contact materials and finish?

The contacts are made of phosphor bronze with a gold mating finish.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.
