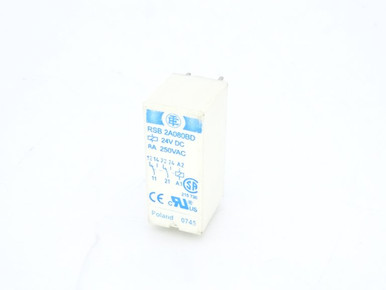

The Schneider RSB2A080BD is a plug-in relay belonging to the Harmony Electromechanical Relays range, specifically within the Interface relay series. This component features 2 Changeover (C/O) contacts with standard operation. It is designed for a control circuit voltage of 24V DC and has a conventional enclosed thermal current rating of 8A.
The relay's contacts are made of Silver alloy (AgNi). It supports a rated operational current of 4A for NC contacts and 8A for NO contacts (AC-1/DC-1). The maximum switching voltage is 300V DC, with a minimum switching voltage of 12V. The maximum switching capacity is rated at 2000 VA or 224 W. Electrical durability is specified at 100,000 cycles for NO contacts and 100,000 cycles for NC contacts.
Mechanically, the relay has a durability of 30,000,000 cycles. It operates within an ambient air temperature range of -40°C to 85°C for both operation and storage. The device offers IP40 protection conforming to IEC 60529. Its pin shape is flat, suitable for PCB mounting.
This relay meets standards including UL 508, CSA C22.2 No 14, and IEC 61810-1. It has a net weight of 0.014 kg. The product is certified by UL, CSA, and EAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The control circuit voltage is 24 V DC.
The rated operational voltage range is 16.8 to 36 V DC.
The maximum switching voltage is 300 V DC.
The contacts are made of silver alloy (AgNi).
The package weight is approximately 13 grams.
It conforms to UL 508, CSA C22.2 No 14, and IEC 61810-1 standards.
