| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
238 pcs
|
238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Current | |
| Diode Type | |
| Forward Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology |

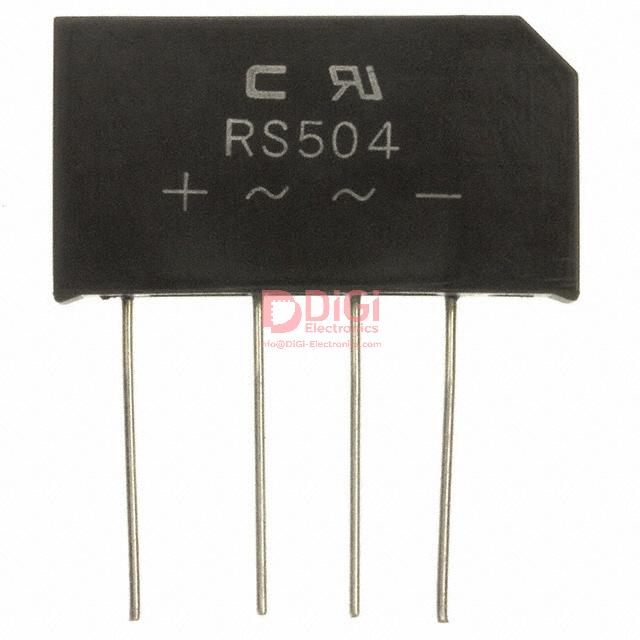

The Comchip Technology RS504-G is a single-phase bridge rectifier designed for general-purpose rectification applications. It offers an average rectified current of 5A and a peak reverse voltage rating of 400V.
The device features a maximum forward voltage of 1V at 5A and a low reverse leakage current of 10µA at 400V. The operating temperature range is from -55°C to 125°C.
This bridge rectifier is housed in a 4-SIP package and is intended for through-hole mounting. Its standard technology ensures reliable performance in various electronic circuits.
Key electrical characteristics include its single-phase operation, standard technology, and robust voltage and current ratings, making it suitable for power supply and conversion circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak reverse voltage rating for the RS504-G is 400 V.
The average rectified current for the RS504-G is 5 A.
The maximum forward voltage for the RS504-G at 5A is 1 V.
The operating temperature range for the RS504-G is -55°C to 125°C.
The RS504-G is designed for through-hole mounting.
The RS504-G is supplied in a 4-SIP, RS-5 package.
