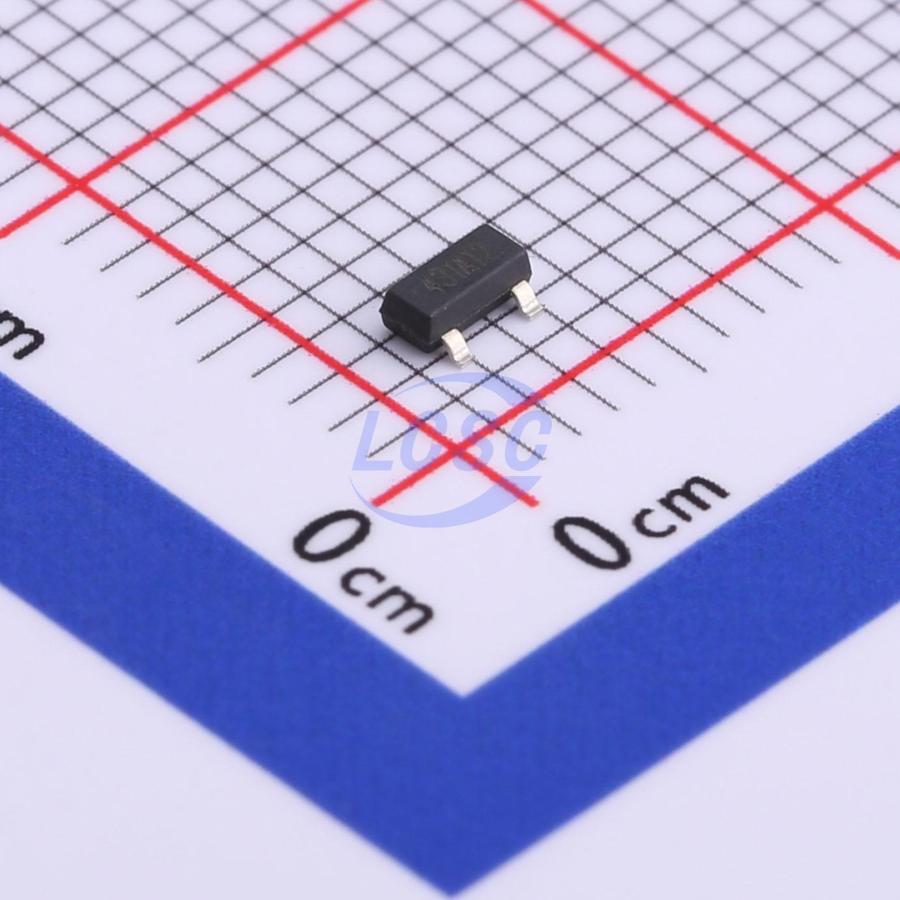

RS431AYSF3 The Runic Technology RS431AYSF3 is a programmable shunt voltage reference IC. It offers a voltage output range of 2.5V to 36V with a tolerance of ±0.5%.
Mfr Part #:

RS431AYSF3

Available from 1 distributors
Mfr Name: Runic Technology
Runic Technology
The Runic Technology RS431AYSF3 is a programmable shunt voltage reference IC. It offers a voltage output range of 2.5V to 36V with a tolerance of ±0.5%.
✓ Total Stock: 1,149 pcs

RS431AYSF3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,149 pcs
On Request
1149 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RS431AYSF3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Output Type
Package / Case
Reference Type
SVHC Present
Supplier Device Package
Temperature Coefficient
Tolerance
View Similar Products (0)

RS431AYSF3 Description

Short technical summary and product information.

The Runic Technology RS431AYSF3 is a programmable shunt voltage reference IC designed for various power management applications. It provides a stable output voltage adjustable from 2.5V up to 36V, with a tight tolerance of ±0.5%. The device can handle an output current of up to 100 mA and a cathode current of 500 µA. Its operating temperature range is -40°C to 125°C, making it suitable for demanding environments.



This voltage reference IC is available in a surface-mount SOT-23-3 package, facilitating integration into compact electronic designs. The RS431AYSF3 is RoHS3 compliant and REACH unaffected, indicating adherence to environmental regulations. Its temperature coefficient is rated at 50 ppm/°C, ensuring reliable performance across a wide temperature spectrum.



Key specifications include a programmable output voltage, a low cathode current, and a precise tolerance, making it a versatile component for voltage regulation circuits, power supplies, and battery management systems. The surface mount package simplifies assembly on printed circuit boards.

RS431AYSF3 Quick Information

Product Type: Shunt Voltage Reference IC
Canonical Name: Runic Technology RS431AYSF3 Shunt Voltage Reference IC
Subcategory: Power Management (PMIC) - Voltage Reference

RS431AYSF3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 3 (168 Hours)
REACH Status: REACH Unaffected

RS431AYSF3 Features

  • Programmable shunt voltage reference IC.
  • Adjustable output voltage from 2.5V to 36V.
  • Tight tolerance of ±0.5% for accuracy.
  • Surface mount SOT-23-3 package.
  • Wide operating temperature range.

RS431AYSF3 Applications

  • Used in adjustable power supplies.
  • Suitable for battery chargers.
  • Ideal for voltage regulation circuits.
  • Applications in monitoring systems.

RS431AYSF3 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage range for the RS431AYSF3?

The output voltage can be programmed from 2.5V to 36V.

What is the tolerance of the RS431AYSF3 voltage reference?

The tolerance is ±0.5%.

What is the maximum output current for the RS431AYSF3?

The device can provide an output current of up to 100 mA.

What is the operating temperature range of the RS431AYSF3?

It operates from -40°C to 125°C.

What type of package is the RS431AYSF3 in?

It is available in a SOT-23-3 package.

Is the RS431AYSF3 RoHS compliant?

Yes, it is RoHS3 Compliant.
