RS2103XH The Runic Technology RS2103XH is a single-pole double-throw (SPDT) analog switch. It operates over a voltage range of 1.8V to 5.5V and features a low on-resistance of 1 Ohm.
Mfr Part #:

RS2103XH

Available from 1 distributors
Mfr Name: Runic Technology
Runic Technology
The Runic Technology RS2103XH is a single-pole double-throw (SPDT) analog switch. It operates over a voltage range of 1.8V to 5.5V and features a low on-resistance of 1 Ohm.
✓ Total Stock: 1,300 pcs
$ Price Range: $0.13

RS2103XH Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,300 pcs
On Request
1300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RS2103XH Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel
Channel Capacitance (CS(off), CD(off))
Current
Frequency
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Switch Circuit
Switch Time (Ton, Toff) (Max)
Voltage
View Similar Products (0)

RS2103XH Description

Short technical summary and product information.

The Runic Technology RS2103XH is a versatile SPDT analog switch designed for efficient signal routing. It operates within a voltage range of 1.8V to 5.5V, making it suitable for a wide array of electronic systems.



Key electrical characteristics include a typical on-resistance of 1 Ohm and a channel resistance of 40mOhm, ensuring minimal signal degradation. The switch offers a fast switching time of 50ns (Typ) and a leakage current of 1µA. Its operating temperature range is from -40°C to 125°C.

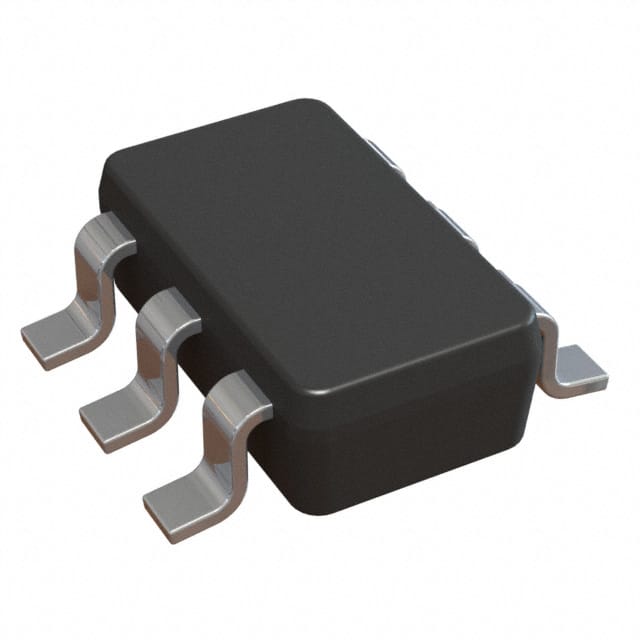

Packaged in a compact SOT-23-6 surface-mount form factor, the RS2103XH is ideal for applications where space is limited. The component is designed for 2:1 multiplexer configurations and features a single circuit.



This analog switch is suitable for various applications requiring reliable signal switching, such as in consumer electronics, communication devices, and industrial control systems.

RS2103XH Quick Information

Product Type: Analog Switch
Canonical Name: RS2103XH SPDT Analog Switch
Subcategory: Multiplexer/Demultiplexer

RS2103XH Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

RS2103XH Estimated Pricing

Qty Low High
1+ $0.13 $0.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

RS2103XH Features

  • Single-pole double-throw (SPDT) switch.
  • Operates from 1.8V to 5.5V supply.
  • Low 1 Ohm typical on-resistance.
  • Fast 50ns typical switch time.
  • Compact SOT-23-6 surface-mount package.

RS2103XH Applications

  • Suitable for signal routing applications.
  • Used in consumer electronics devices.
  • Applicable in communication systems.
  • Ideal for industrial control circuits.

RS2103XH FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the RS2103XH?

The RS2103XH operates from 1.8V to 5.5V.

What is the package type for the RS2103XH?

The RS2103XH is supplied in a SOT-23-6 package.

What is the operating temperature range of the RS2103XH?

The operating temperature range for the RS2103XH is -40°C to 125°C.

Is the RS2103XH RoHS compliant?

Yes, the RS2103XH is RoHS3 compliant.
