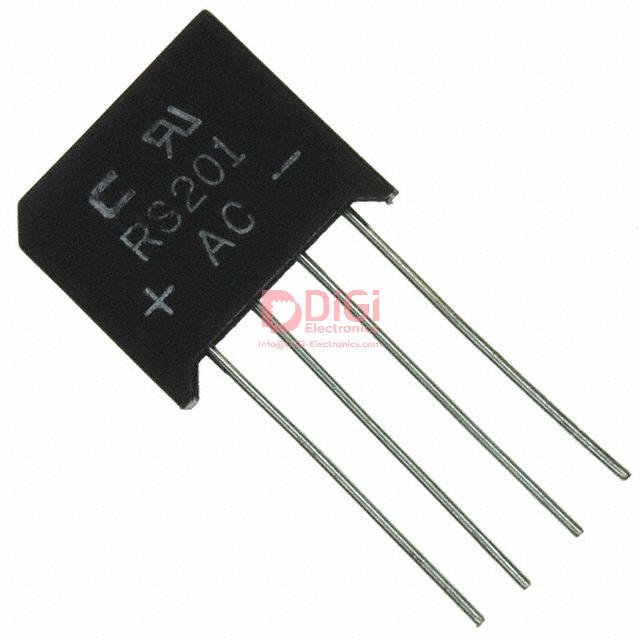

RS201-G The Comchip Technology RS201-G is a single-phase bridge rectifier with a 50V peak reverse voltage and 2A average rectified current. It features a through-hole mounting type.
Mfr Part #:

RS201-G

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
The Comchip Technology RS201-G is a single-phase bridge rectifier with a 50V peak reverse voltage and 2A average rectified current. It features a through-hole mounting type.
✓ Total Stock: 40 pcs
$ Price Range: $0.40

RS201-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

RS201-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
SVHC Present
View Similar Products (0)

RS201-G Description

Short technical summary and product information.

The Comchip Technology RS201-G is a single-phase bridge rectifier designed for general-purpose applications. It offers a maximum peak reverse voltage of 50V and can handle an average rectified current of 2A.



The forward voltage drop is a maximum of 1.1V at 2A, with a low reverse leakage current of 10µA at 50V. This component operates within a temperature range of -55°C to 125°C.



Packaged in a 4-SIP, RS-2 configuration, the RS201-G is designed for through-hole mounting. Its standard technology ensures reliable performance in various electronic circuits.



Environmental compliance includes REACH Unaffected status and Moisture Sensitivity Level 1 (Unlimited).

RS201-G Quick Information

Product Type: Bridge Rectifier
Series: RS201
Canonical Name: Comchip Technology RS201-G Single Phase Bridge Rectifier
Subcategory: Single Phase

RS201-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

RS201-G Estimated Pricing

Qty Low High
1+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

RS201-G Features

  • 50V peak reverse voltage rating.
  • 2A average rectified current capacity.
  • 1.1V maximum forward voltage.
  • Through-hole mounting type.
  • Standard technology bridge rectifier.

RS201-G Applications

  • Suitable for single-phase rectification.
  • Used in power supply circuits.
  • General purpose electronic applications.
  • Component for AC to DC conversion.

RS201-G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum peak reverse voltage of the RS201-G?

50V.

What is the average rectified current rating of the RS201-G?

2A.

What is the forward voltage of the RS201-G at 2A?

1.1V maximum.

What is the reverse leakage current of the RS201-G at 50V?

10µA maximum.

What is the operating temperature range of the RS201-G?

-55°C to 125°C.

What package does the RS201-G come in?

Through-hole 4-SIP RS-2 package.
