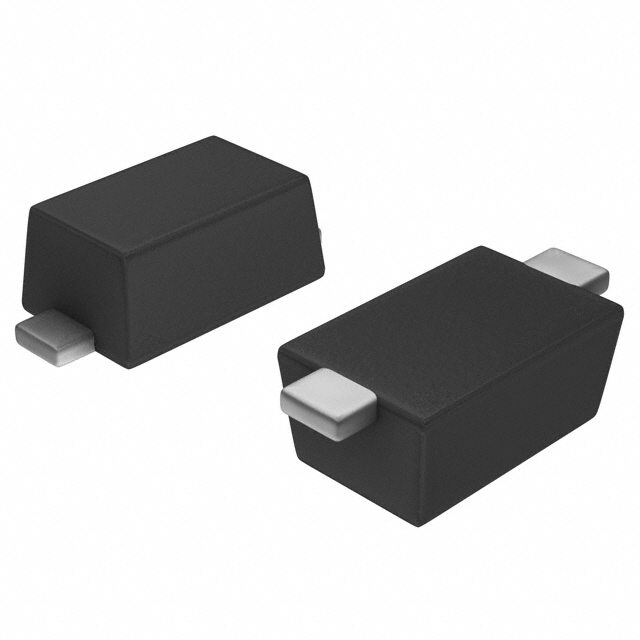

The RS1MFA is a surface mount fast recovery rectifier from On Semiconductor, part of the RS1AFA series. It is designed for high efficiency switching applications requiring fast reverse recovery. The device features a glass passivated chip junction for enhanced reliability and is qualified to AEC-Q101 standards for automotive use.
Key electrical specifications include a maximum repetitive peak reverse voltage of 1000V, average forward current of 800mA, and a low forward voltage of 1.3V maximum at 800mA. The reverse recovery time is 500ns, enabling efficient high-frequency operation. The device can handle a peak forward surge current of 30A (8.3ms single half sine-wave) and has a typical junction capacitance of 10pF at 4V.
Packaged in the SOD-123FA case, the RS1MFA is surface mountable and suitable for automated assembly. It operates over a junction temperature range of -55°C to +150°C. The molding compound is UL 94V-0 rated, and the component is RoHS compliant with MSL 1 per J-STD-020. Thermal characteristics include a junction-to-lead thermal resistance of 32°C/W and junction-to-ambient of 105°C/W when mounted on a 5mm x 5mm copper pad PCB.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.60 | $0.60 |
| 10+ | $0.37 | $0.37 |
| 100+ | $0.21 | $0.21 |
| 500+ | $0.18 | $0.18 |
| 3,000+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1000 V.
800 mA.
1.3 V maximum.
500 ns.
SOD-123FA.
-55°C to 150°C.
30 A (8.3 ms single half sine-wave).
