| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,577 pcs
|
1577 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Translator Type | |
| Voltage |
The RS0102YH8 from Runic Technology is a voltage level translator designed for bidirectional signal translation. This IC supports a wide operating voltage range for VCCA from 1.65V to 5.5V and for VCCB from 2.3V to 5.5V, making it versatile for various interfacing needs.
With a data rate capability of up to 24Mbps, the RS0102YH8 is suitable for applications requiring moderate speed data transfer. It features 2 channels per circuit and a single circuit configuration, with output types including Open Drain and Push-Pull.

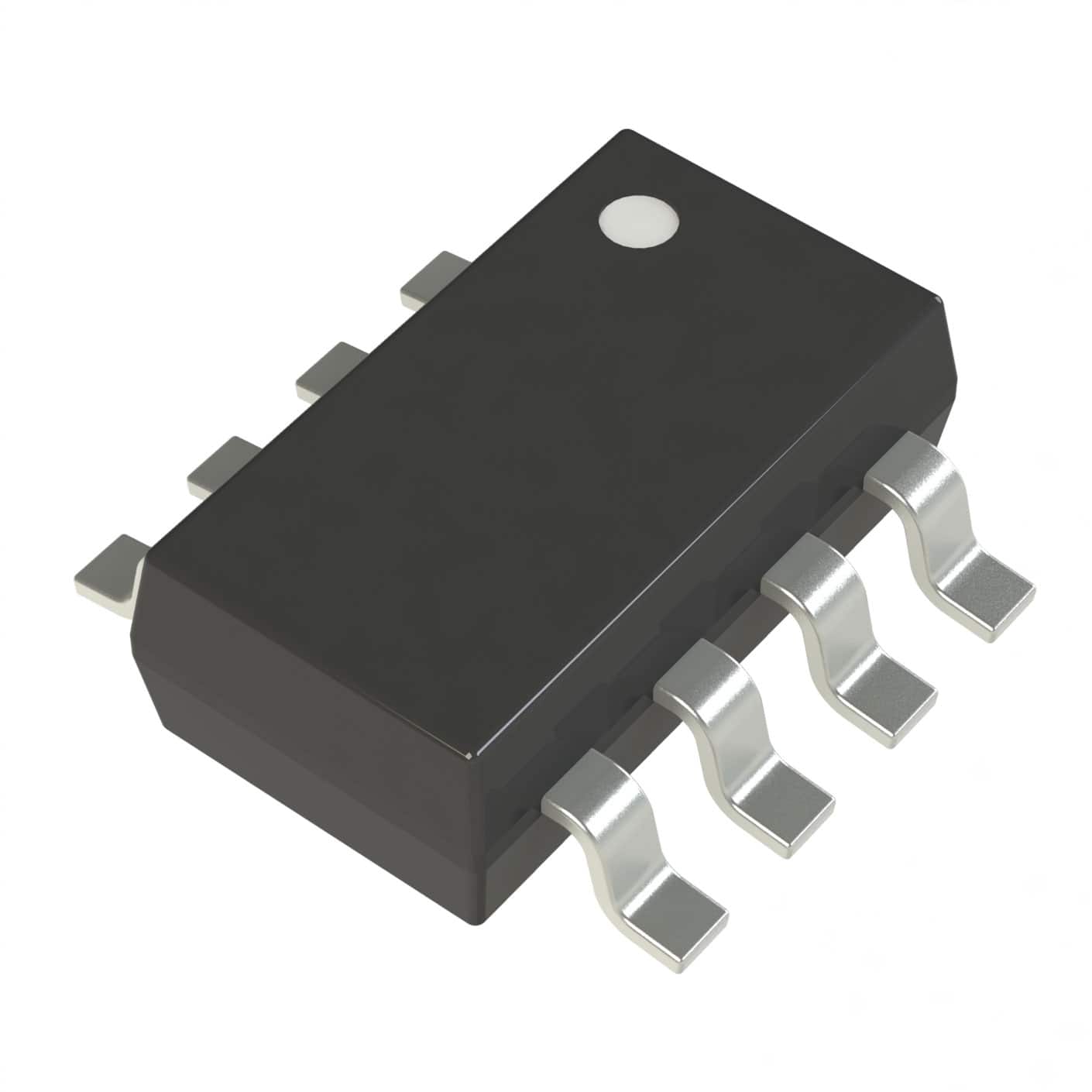

The device is housed in a compact SOT-23-8 surface mount package, ideal for space-constrained designs. The operating temperature range is -40°C to 85°C (TA), ensuring reliable performance in diverse environmental conditions. This translator is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device supports two supply ranges: one from 1.65 V to 5.5 V and the other from 2.3 V to 5.5 V.
It has 2 channels per circuit and 1 circuit, providing two bidirectional translation paths.
It is supplied in an SOT-23-8 surface-mount package.
It operates from -40°C to 85°C.
The maximum data rate is 24 Mbps.
It supports open-drain and push-pull outputs.
Yes, it features bidirectional channel type.
