| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage (Nominal) | |
| Input Voltage Max | |
| Isolation Voltage | |
| Length | |
| Max Capacitive Load | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package Material | |
| Power (Watts) | |
| Safety Certifications | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

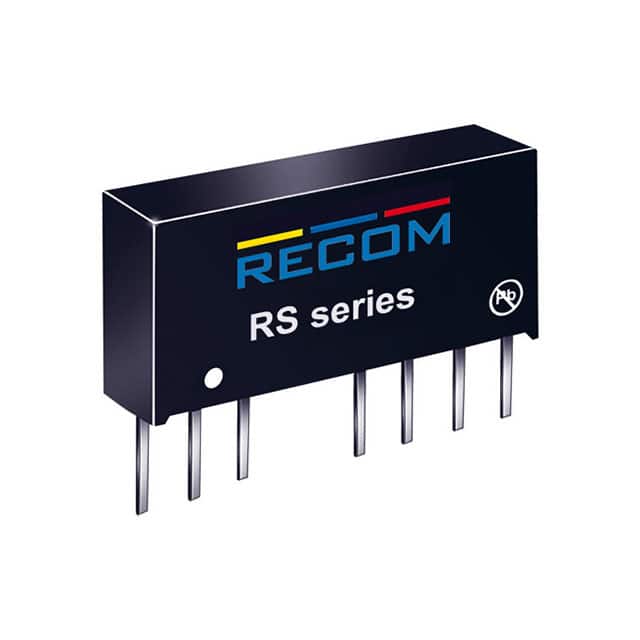

The Recom Power RS-2405S/H3 is a 2W isolated DC/DC converter in a compact SIP8 package. It accepts a nominal 24V input (18-36V range) and delivers a regulated 5V output at up to 400mA. The module provides 3000VDC input-to-output isolation, making it suitable for applications requiring galvanic isolation.
Key electrical specifications include a typical efficiency of 78%, short circuit protection (SCP), and remote on/off control with active-low enable. The converter is designed for commercial ITE and medical applications, with an operating temperature range of -40°C to +85°C.
The device is housed in a UL94 V-0 rated 8-SIP through-hole module measuring 21.8mm x 9.2mm x 11.1mm. It is RoHS3 and REACH compliant, and carries safety certifications including UL60950-1, CAN/CSA 60950-1-07, IEC/EN60950-1, and CB Report.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.21 | $24.21 |
| 5+ | $23.17 | $23.17 |
| 10+ | $22.80 | $22.80 |
| 22+ | $22.30 | $22.30 |
| 44+ | $21.93 | $21.93 |
| 110+ | $21.58 | $21.58 |
| 264+ | $19.79 | $19.79 |
| 506+ | $18.26 | $18.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V and the output current is 400mA.
The input voltage range is 18V to 36V, with a nominal input of 24V.
The isolation voltage is 3000VDC.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant.
It comes in an 8-SIP through-hole module with 7 leads.
It is certified to UL60950-1, CAN/CSA 60950-1-07, IEC/EN60950-1, and has a CB Report.
