| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
740 pcs
|
740 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

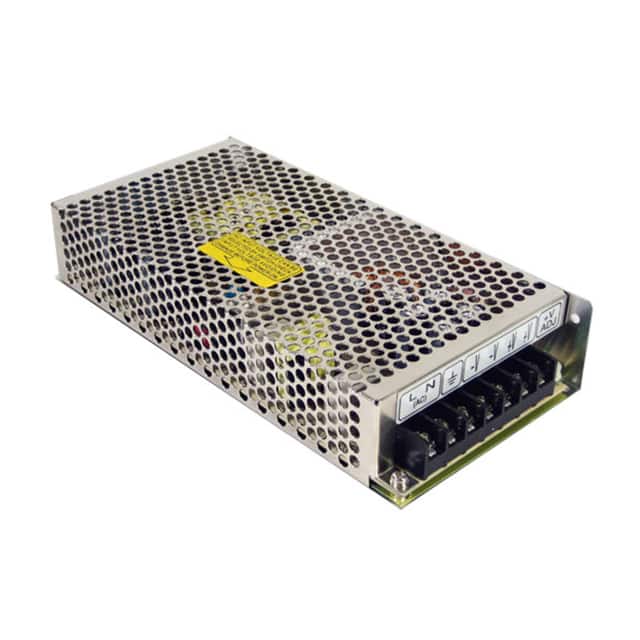

The Mean Well USA RS-150-48 is an enclosed AC/DC converter designed for chassis mount installation. It delivers a single 48V output at 3.3A with a maximum power rating of 158W. The converter achieves 87% typical efficiency and features an adjustable output for flexibility in system tuning.
Rated for commercial ITE applications, the RS-150-48 carries approvals from CB, CE, cURus, and TUV agencies. It offers an isolation voltage of 3kV and operates over a temperature range of -25°C to 70°C with derating. The compact enclosed package measures 199.0mm x 98.0mm x 38.0mm (7.83" x 3.86" x 1.50").
48V at 3.3A (158W).
-25°C to 70°C with derating.
Listed as RoHS3 Compliant (unverified).
Enclosed, chassis mount.
CB, CE, cURus, TUV.
